Multi-core Shielded Cables KPEL-MU for Harsh EnvironmentsAvailable for Import

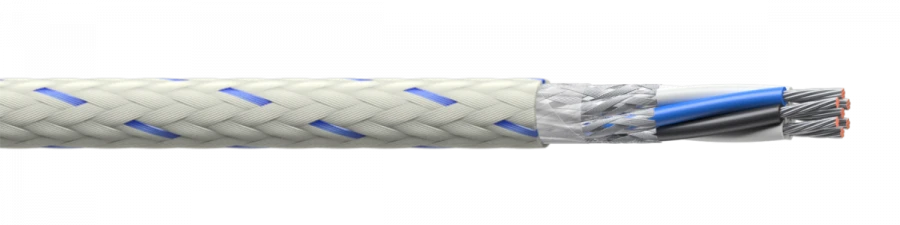

Multi-core Shielded Cables KPEL-MU for Reliable Performance in Harsh Environments

On-Board Electrical Wires
Manufacturer:Podolsk Cable OJSC
Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Available Models

Cables on-board KPLM

Description

Cables multicore with polyethylene insulation braided, small-sized are designed for operation at temperatures from minus 60 to +85 °? and voltage up to 250 V AC frequency up to 5000 Hz or 350 V DC. Service life is not less than 15 years at operation in the temperature range from minus 60 to +85 ° C.

Specifications

Core material
tinned copper tinned multiwire, reinforced with steel-copper wires
Insulation material
polyethylene
Cladding
Capron sheath
Screen
Braid made of tinned copper wires
Winding
Polyamide film (wrapping with polyamide film and braiding with lavsan threads over single-pair cables of KPLEMU grades is not provided).
Protective cover
braiding of lavsan yarns impregnated with organosilicon varnish
Section
0,20; 0,35 mm²
Number of cores
4 to 30; 1x2; 3x2; 4x2; 4x2; 7x2
Nominal voltage
250 ?
Climatic version
In accordance with GOST 15150-69
Execution
Quality category - VP

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
