Available Models

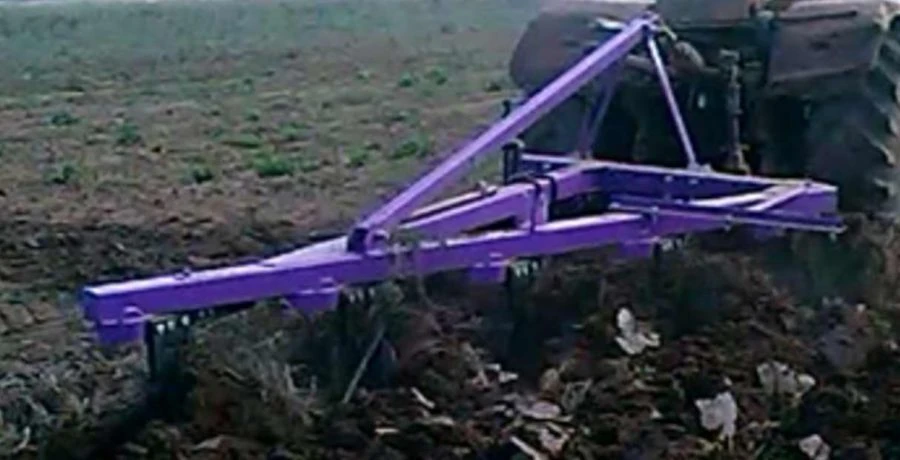

Mounted plough PLNU-5-35V

Description

Plough plough plough PLNU-5-35PV is designed for ploughing various soils for cereals and industrial crops to a depth of 30 cm, not clogged with stones, flagstones and other obstacles, with a specific resistance up to 0.09 MPa (0.09 kg/cm2) under the following conditions: <ul> <li>- moisture content of the treated layer up to 30 per cent;</li> <li>soil hardness up to 4 MPa;</li> <li>height (length) of plant and crop residues up to 25 cm;</li> <li>maximum field relief slope of 8 degrees.</li> </ul>Plough linkage is adjustable. The plough is equipped with skimmers. The plough design has a device for attaching harrows, rollers and other implements for surface tillage simultaneously with ploughing.

Specifications

Type of product according to PP RF 616

General purpose plows

Assignment

general

Type

plowshare

Housing working width

Built-in memory card slot, support microSD/SDHC/SDXC card (up to 256GB); manual recording/alarm recording cm

Performance

1.7

Overall dimensions (DxWxH), mm

4263x2375x1515

Capacity per shift, m3/shift

40800

Design working width

1.75 m

Number of enclosures

5 pcs

Depth of treatment

30 cm

Type of aggregation

hinged

Additional equipment - skimmers

5 pcs

Distance from the support plane to the lower plane of the frame

620 mm

Distance between bodies in the plow path

800 mm

Ground clearance in transport position

210 mm

Weight

650 kg

Technological wheel

1 pcs

Operating speed

Transport speed

Overall dimensions in working position of the plow

2375 mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
