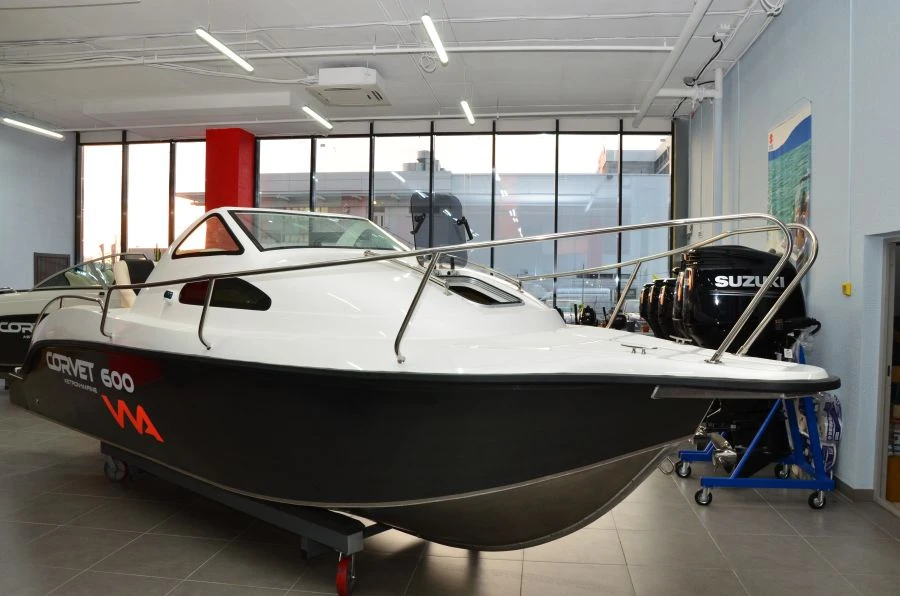

Motorboat "Corvette 600 WA"

1.MAIN DATA


1.1.Type of vessel
A motorised vessel (hereinafter referred to as "the vessel") is a high-speed vessel with an open cockpit.
cockpit. The hull is of the deep-V type with a transom stern.



1.2.Purpose of the vessel and area of navigation
The vessel is intended for water cruising in sea area or inland water basin of
IV category of complexity category III with wave height of one per cent up to 1.2 m,
distance from the place of refuge not more than 6 nautical miles.

1.3.Climatic design
The vessel is designed for operation at outside air temperature from 00C to + 400C,
relative humidity up to 85% and the temperature of the bottom water from 0°? to + 320?.


1.4.General layout of the Corvette 600 WA
In the forward part of the vessel there is a closed cabin with two berths. On the aft wall of the cabin there is a control station.
In the middle part of the vessel there is an open cockpit. In the aft part of the vessel there is a motor recess for an outboard...
