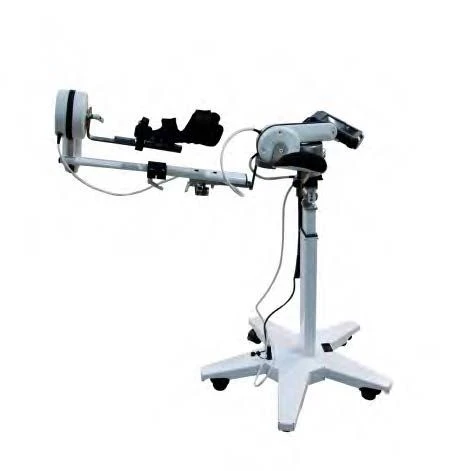

Motor apparatus for robotic mechanotherapy of upper limb joints "ORTORENT", model "Orthorent elbow compact".

Medical Equipment Supplies

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

The motor device for robotic mechanotherapy of joints of the upper extremities "ORTORENT", model "Orthorent Elbow Compact" ORTO.941569.010, is designed to provide motor therapy to prevent immobilisation complications, accelerated restoration of painless movements in the joint and accelerated healing; the model is intended for treatment of most injuries, postoperative conditions and diseases of the elbow joint

Specifications

Type of product according to PP RF 616 Medical devices, including surgical, other, not included in other groupings

Set composition Executive mechanism for elbow joint development; Hand control panel; Operating instructions; Data sheet

Overall dimensions of the device (WxD min\max xHmin\max) 1305 mm

Transport dimensions of the unit (WxDxH) 285 mm

Transport dimensions of the device in the box (WxDxH) 290 mm

Apparatus weight 20 kg

Dimensions of the chair (WxDxH) 1010 mm

Diameter of chair handle 22 mm

Chair wheel diameter SBVVBG mm

Chair weight 17 kg

Dimensions of armrest for arm to chair (WxDxH) 280 mm

Maximum permissible load on chair support parts, kgf 1471

Maximum patient weight 150 kg

Size of the hand control panel (WxDxH) 45 mm

Supported diameter of the patient's arm for cuff fixation, mm Up to 100

Height and length adjustment mechanical

Height adjustment range (from floor to forearm support min\max) 1250 mm

Height adjustment range (from seat to forearm support min\max) 750 mm

Forearm length min\max 460 mm

Elbow movement characteristics: Extension/flexion, degrees - 5 to 140

Characteristics of elbow joint movements: Pronation/supination, degrees 90 to 90

Minimal patient height 110 cm

Maximum patient height 200 cm

Maximum power consumption 40

Power consumption 33

Weight of armrest for arm to chair 1.2 kg

Weight of the hand control panel 0.4 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
