Motherboard module (FLAB.469535.001)

Mounted Circuit Boards

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

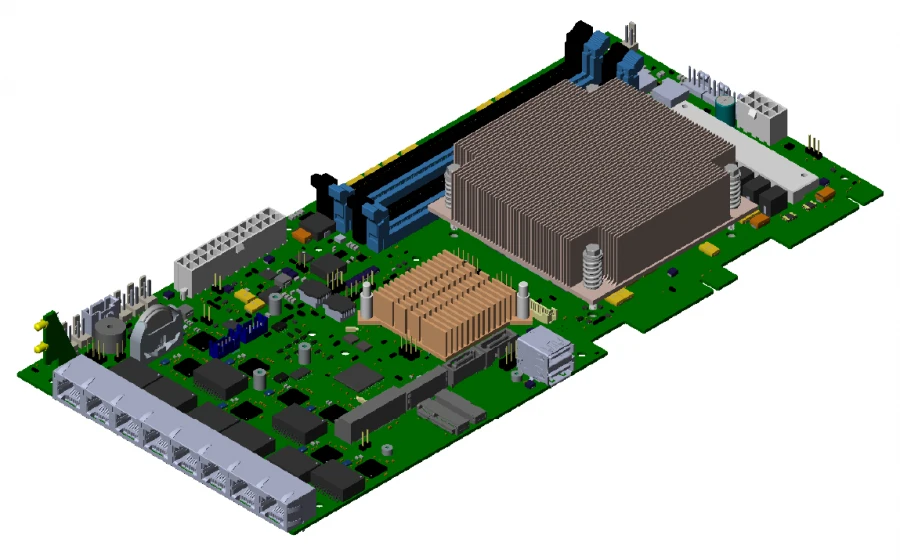

The motherboard module provides communication between the components installed on the motherboard, their power supply and the performance of all their functions by these components. The module contains slots and connectors for the CPU, memory modules, storage devices, additional expansion cards, as well as for data input/output and communication with other devices and systems.

Specifications

Processor socket LGA 1151 v2 to fit Intel Xeon E-22xx series processors, Core i and other compatible processors

RAM slots 4 x ECC/non-ECC UDIMM slots, support dual-channel DIMM DDR4 2400/2666/3200 MHz up to 32 GB per module.

Expansion slots 1 x M.2 PCIe 2230 Key A-E 1; x M.2 PCIe 2230 Key E; 1 x M.2 SSD SATA 2280; 1 x mini PCIe Full

Network interfaces 8 x RJ45 10/100/1000 Mbps

Internal connectors 2 x SATA3 up to 6Gbps; 4 x USB 2.0 up to 480Mbps; 2 x OCP 3.0 expansion card edge connectors; 4 x 4-pin fan connectors; 1 x VGA interface connector; 1 x RS232 interface connector; 1 x cable connector.

External I/O on the front edge of the module 2 x USB 3.0 up to 5Gbps

Nutrition ATX 24 pin + 8 pin

Dimensions: L x W x H 320 x 150 x 41,6 mm
