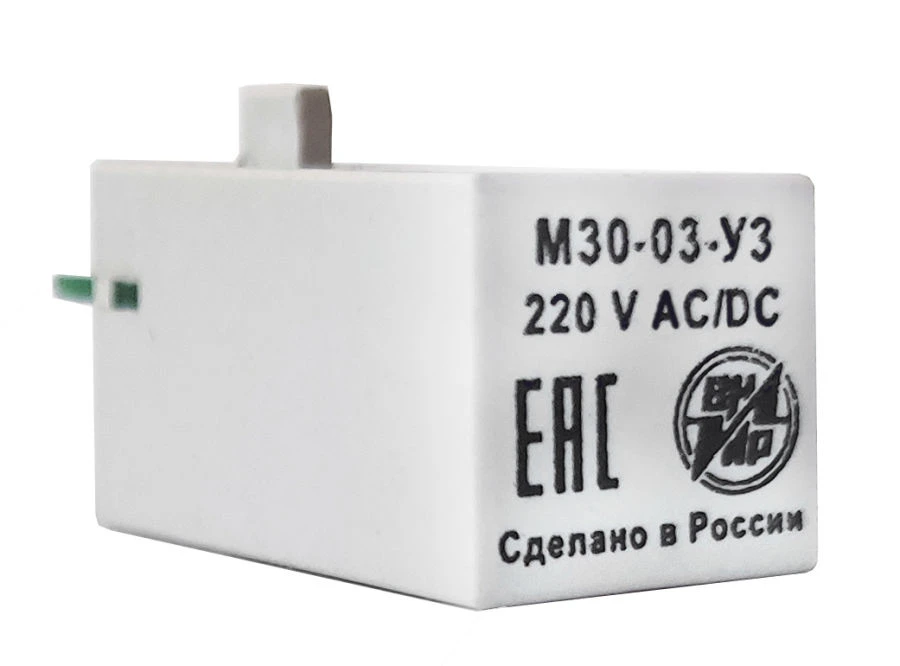

Modules of M30 series

Intermediate Control Relays

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Modules of M30 series are designed to extend the functionality of relay, protection of relay coil against overvoltages, protection against interference in the power supply network arising during operation and light indication of relay status, ensuring normalised relay parameters and realisation of time delay. Module M30 and relay intermediate RP30 are installed on the socket RP30 and represent a single design of relay modular RP30 or RP30-VX, depending on the types of modules installed. Can be part of the product "Intermediate modular relays RP30 series" as a separate module. Conforms to technical conditions GLCI.647115.066 TU and requirements of ?? ?? 004/2011 and 020/2011

Specifications

Climatic version U3, T3

?30-01 Protective diode. Limits overvoltage on DC coils. Decay time is increased by about 3 times.

?30-02 RC circuit limits overvoltage. Reverse overvoltage peaks are damped by 2.5 times the value of the nominal voltage. Decay time is increased slightly.

?30-03 Limits overvoltage on AC and DC coils. Decay time is not increased, peaks are limited by varistor voltage.

?30-04 Stabilising load RC circuit.

?30-05 Stabilising load resistor.

?30-06 Green LED

?30-07 Green LED and RC circuit.

?30-08 Зеленый светодиод и варистор

?30-09 Green LED with protection diode

?30-21 Rectifier diode bridge

?30-22 Rectifier diode bridge with protective diode. Limits overvoltage on coils

?30-23 Rectifier diode bridge. RC circuit limits overvoltage

?30-24 Rectifier diode bridge. Varistor limits overvoltage on the coils

?30-25 Выпрямительный диодный мост. Стабилизирующий нагрузочный резистор

?30-26 Rectifier diode bridge. Green LED

?30-27 Rectifier diode bridge. Green LED and RC circuit

?30-28 Выпрямительный диодный мост. Зеленый светодиод и варистор

?30-29 Rectifier diode bridge. Green LED with protection diode

M30-B1 Single-command with time delay for switching on or off

M30-B2 Cyclic with equal pulse and pause durations

M30N-B1 Single-command with time delay for switching on or off with provision of standardised tripping parameters

M30H-B2 Cyclic with equal pulse and pause durations with provision of normalised tripping parameters

Function performed Provision of normalised triggering parameters

Rated DC voltage, V 220 V

U of operation (Ucp) in cold state, %Un, not more than 65 %

U of non-operating, %Un, not less than 60 %

Return U, %Un, not less 30 %

Response time, ms, max. B1/B8 2100/900 MHz

Power consumption of the relay for direct current In steady state - 1.2 W

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
