Module UVEOS-07 GTIYA.468332.026

Mounted Circuit Boards

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

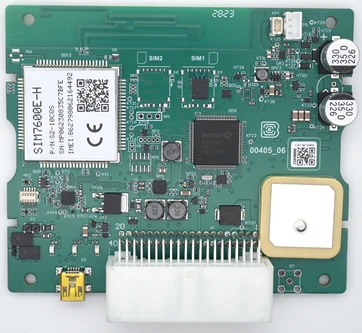

The module UVEOS-07 GTIYA.468332.026 is a system (main) printed circuit board, carrying the main functional load in the final product "Intelligent navigation terminal UVEOS "GORIZONT A-2.1.2 GTIYA.464425.001-02"; containing a central microcontroller, GSM/UMTS modem and, including also a permanent memory for storing the executable programme code. UVEOS-NA module is designed to determine the coordinates, speed and direction of the vehicle using signals of global navigation satellite systems, to initiate and transmit a message about the vehicle in case of road traffic and other accidents, and to provide two-way voice communication with emergency operational services via mobile radio telephony networks and (optionally) satellite communication.

Technical Specifications

Number of tracking channels of GLONASS/GPS/SBAS/Galileo receiver	44 pc
Time interval of navigation data update	1
Accuracy (at confidence level 0.95) of determination of planned coordinates, not more than	15 m
Accuracy (at confidence level 0.95) of height determination, not more than	15 m
Searching (detecting) GNSS signals at the level of useful signal at the antenna input (at the input of the antenna amplifier)	minus 163 dBW
GNSS signal tracking and navigation solution output at the level of useful signal at the antenna input (at the input of the ante	minus 180 dBW
GSM frequency bands	3G (900/2100) MHz; 2G (900/1800) MHz
UMTS frequency range	900/2100 MHz
Internal non-volatile memory	2 Gbit.
Number of digital outputs	3 pc
Number of digital inputs	2 pc
Supported interfaces	RS-485 (1 pc.), CAN (2 pcs.)
Product life	7 a
Accuracy (at confidence level 0.95) of velocity determination	0.1
Nominal voltage	24 V

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
