Available for Import

Module ATOM-ATB ANPB.465235.001-03

Data Processing Equipment

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

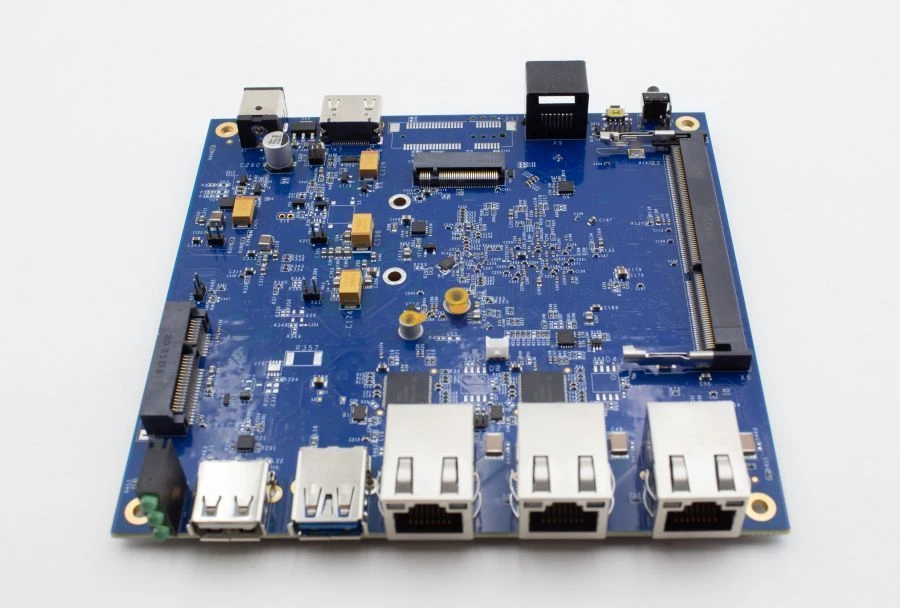

Automatic data processing device, ready for installation in information infrastructure, chassis, enclosures, or functioning in an unencapsulated version, made in the form of a complete module containing: motherboard with soldered elements, Intel Atom microprocessor, memory card slots, SSD/HDD and RAM slot, audio-video signal codecs with HDMI port; installed on the board: power buttons, power management, I/O communication ports, optional communication modules; "Basic Atom I/O System" software loaded in the BIOS chip; other technical means that allow you to load programs, collect and process data, manage the device and other devices and networks connected to it, other functions.

Technical Specifications

Processor	Integrated Intel Atom E3845 - 4 cores, 2 MB L2 cache, 1.91 GHz
Number of processor cores	4 pc
Processor cache	2
CPU clock frequency	1.91
Interface for hard disc connection	SATA 3.0 (M.2 slot, 7-pin connector)
Network interface	3 x 1G/100M Ethernet (RJ-45)
Console port	RS-232C (RJ-45)
Video adapter	Integrated Intel HD Graphics; 1-2 x HDMI port (ver. 1.4, 1080P, 60 Hz)
Expansion slot	Mini-PCIe (PCIe, USB 2.0, SPI, SIM, I2C interfaces)
Power supply voltage	B1/B8 2100/900 MHz V
Power supply capacity	NZ-150-14,5 W
Operating temperature range	0...70 °C
Weight	200 g
Network controller	Intel i226
Interfaces for connecting hard disks	SATA 3.0 (M.2 2242 slot); SATA 3.0 (7-pin connector)
USB interfaces	2 USB 2.0,2 X USB 3.0 - type A connectors; 1 X USB 2.0 (PLS-5 connector); 1 X USB 2.0 (as part of mini PCI-e connector)
Specialized hardware and software	Software protection BIOS hardware Watchdog Timer with software controlled software-accessible platform serial number
Software	Basic ATOM output input system (BIOS UEFI / LEGACY with OS installation preparation)
Memory card slots	availability
RAM slot	availability

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
