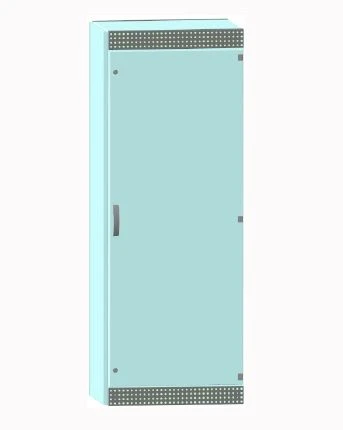

Modular low-voltage switchgear MKU-MF/W: universal section

Low-Voltage Electrical Panels

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Low-voltage complete device of modular design NKU-MF/W is designed for input and distribution of direct and alternating current electricity to consumers, including for own needs, as well as control of electric motors of shut-off and regulating valves and mechanisms in installations in various areas of industry and nuclear power plants.

Technical Specifications

Rated insulation voltage	1000 V
Rated impulse withstand voltage	B1/B8 2100/900 MHz V
Protection class against impulse overvoltages	IV
Rated current of busbars	6300 A
Rated short-circuit conditional current	100000 A
Internal arc protection according to IEC 61641	85000 A
Grounding system	TT-IT-TNS-TNC
Maximum power of motor control function blocks	250 kW
Cable entry	Top/bottom
Access	Front/rear
Maximum permissible altitude above sea level	1000 m
Type	Low-voltage complete unit of modular construction NKU-MF/W: universal section
Climatic version	UHL, T
Temperature class	-
Degree of protection	IP42
Housing material	Metal
Material of manufacture	Metal/non-metal
Color	gray
Height	2200 mm
Width	1200 mm
Type of explosion protection	-
Modules	-
Material	-
Current capacity	-
Explosion protection	-
Size; mm	- mm
Mark	NKU-MF/W: universal section
Equipment	-
Assignment	Low-voltage complete unit with modular design
Length	1200 mm
By explosion protection	-

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
