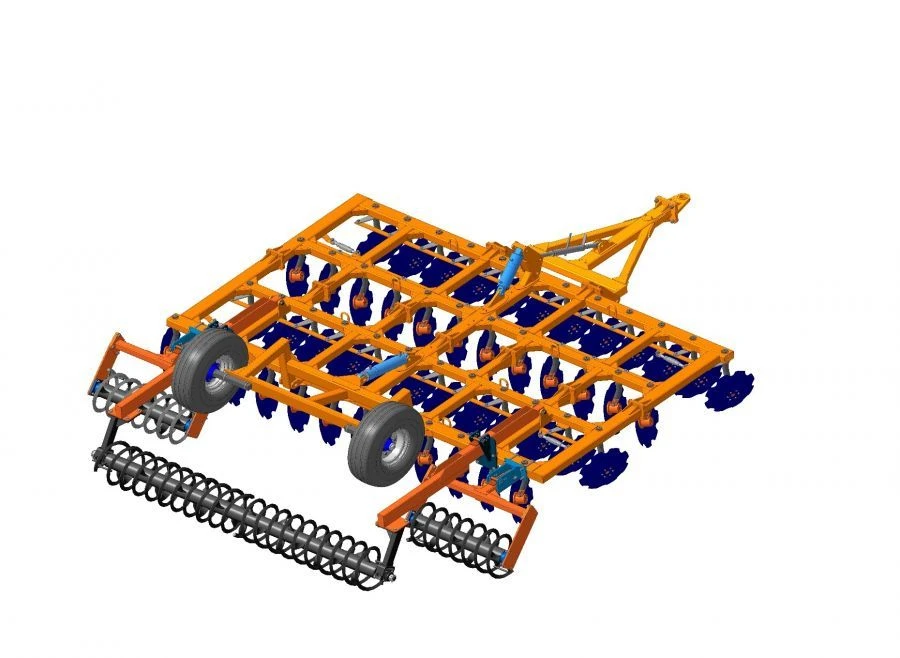

Modular disc harrow PM-5x4/09
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description
The modular, semi-trailed disc harrow is designed for conventional, minimum tillage and pre-sowing tillage for cereals, industrial and forage crops, refreshing sodden meadows and stubble haying. In one pass the harrow shreds and embeds plant residues of the predecessor and weeds into the soil, creates a loosened and levelled soil layer, embeds the applied fertilisers. The design feature of the harrow is the increased distance between the rows of cutting units, which excludes clogging of the inter-row space, especially when cultivating soils with high humidity.
Specifications
Type of product according to PP RF 616
Disc harrows
Distance between rows
900 mm
Weight
4500 kg
Working width
5 m
Number of implement rows
4 pc
Material of working elements
Steel 30MnB5
Material of frame structures
09G2S steel
Harrow type
semi-trailer
Height
1660 mm
Width
5345 mm
Length
6665 mm
Operating speed
8...12
Capacity per hour
4
Number of working orans
48 pc
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
