Modular computer MK150-02

All-in-One Computing Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

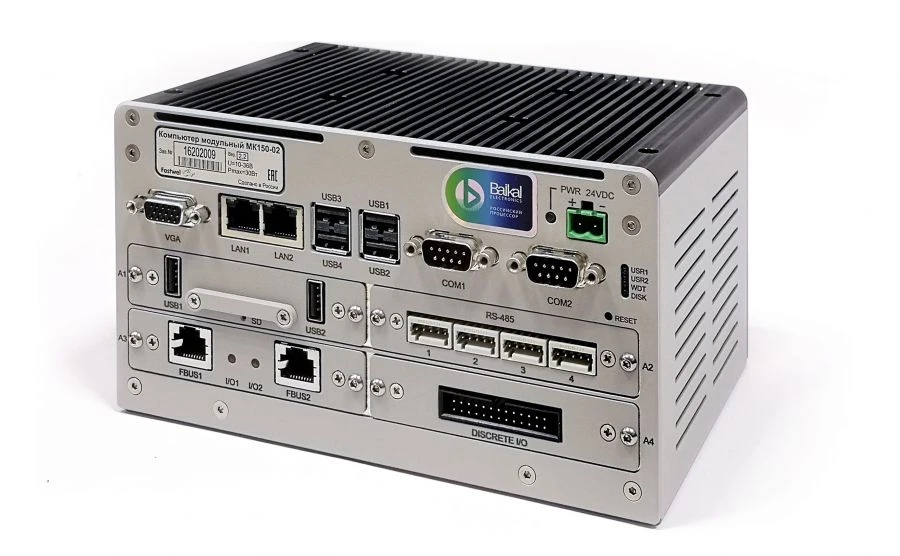

The MK150-02 modular computer is based on the CPC313 processor module. It is intended for use as a stand-alone computing device in automated process control systems. Power supply voltage is 10 - 36 V.
It has no moving parts. Operating temperature range from minus 40 to plus 50 º?. Mounting on a DIN-rail or mounting plate.

Technical Specifications

Processor	Baikal-T1 1.2 GHz MIPS32 (Dual Core)
RAM	Soldered DDR3-800 MHz: 4GB
Built-in SSD drive	8 GB
VGA interface	Possibility of connection of RGB (VGA) monitors with resolution not more than - 1920×1080; volume of video memory (allocated from the system memory) not more than - 16 Mbyte.
Ethernet 10/100/1000 Mbit	2 channels
USB 2.0	6 ports
RS232	2 serial ports up to 115.2 Kbps
RS422/485	4 serial ports: 500 B galvanic isolation; speed up to 921 Kbps
FBUS	Two connectors
Discrete I/O port	Armoured glass
SDCard Type I or II	Two connectors
Software compatibility with OS	QNX 6.x; Linux Debian 10 (kernel 5.4); ZOSRV "Neutrino".
Panel or DIN rail mounting option	Armoured glass
Weight, not more	1.7kg (excluding fixing elements)
Dimensions, not more	204,1?149?110 mm (with DIN rail fixing)
Operating temperature range	minus 40 to plus 50 ºC
Power supply voltage	10 - 36 ?
Power consumption	Not more than 30 W (excluding external devices)
Type of product according to PP RF 616	Computational electronic digital machines containing in a single housing a central processing unit and an input and output device, combined or not, for automatic data processing

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
