Available for Import

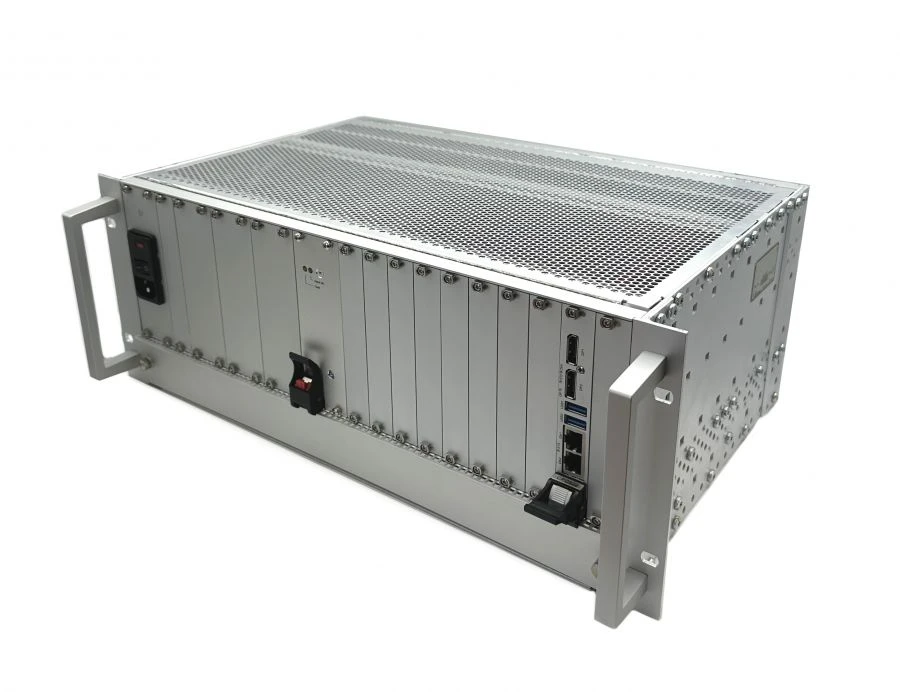

Modular computer Gryphon-CM

All-in-One Computing Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

The product is a modular computer designed based on the CompactPCI® Serial (CPCI-S) standard. The product is based on the CPC522-01 processor module, which includes an Intel Xeon E2276ML processor. The product is designed to perform high-speed computing, provide information interaction in the creation of high-performance information and control systems.

Technical Specifications

Processor module	CPC522-01 (Intel Xeon E2276ML 2 GHz, 12 MB Cache, 25 W)
Backplane	basic functional and mechanical characteristics correspond to CPCI Serial specification; Ethernet interface layout - Single Star; possibility of RIO modules connection; number of slots - 9 pcs. according to CPCI Serial specification; slot number - 9 pcs. a
Power supply	3U/8HP format; input supply voltage 220V ± 10%, 50 - 60Hz AC; output power not less than 300W; number of output voltages: 2 (+5V and +12V); output voltage 5V, current 2.5A; output voltage 12V, current 25A.
Fan unit	number of fans - 2 pcs; supply voltage +12 V; rated air flow 138 m3/hour
Consumption current	Not more than 1,5 A
Weight, not more	10,5 kg
Dimensions, mm, max.	(482,6±0,4) x (329,0±3,0) x (177,0±0,4)
Operating temperature range	minus 20 to plus 70 ºC
Type of product according to PP RF 616	Computational electronic digital machines containing in a single housing a central processing unit and an input and output device, combined or not, for automatic data processing

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.

Shipping & Payment Information

Shipping Terms

FOB: Novorossiysk, Russia
CIF: Available to major ports worldwide
EXW: Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination)
Air freight: 14-21 days (for urgent orders)
Production lead time: 30-90 days (depending on order size)

Payment Methods

Letter of Credit (L/C)
Wire Transfer (T/T)
Escrow Services

Order Minimums

We work with orders starting from 1 container
You can mix different products in one container
Volume discounts available for larger orders

Customs & Documentation Support

We provide comprehensive assistance with all export documentation, customs clearance, and logistics arrangements. Our team has extensive experience facilitating international trade with businesses in Africa, Middle East, Asia, and Latin America.
