Modular computer Grifon-KM

All-in-One Computing Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

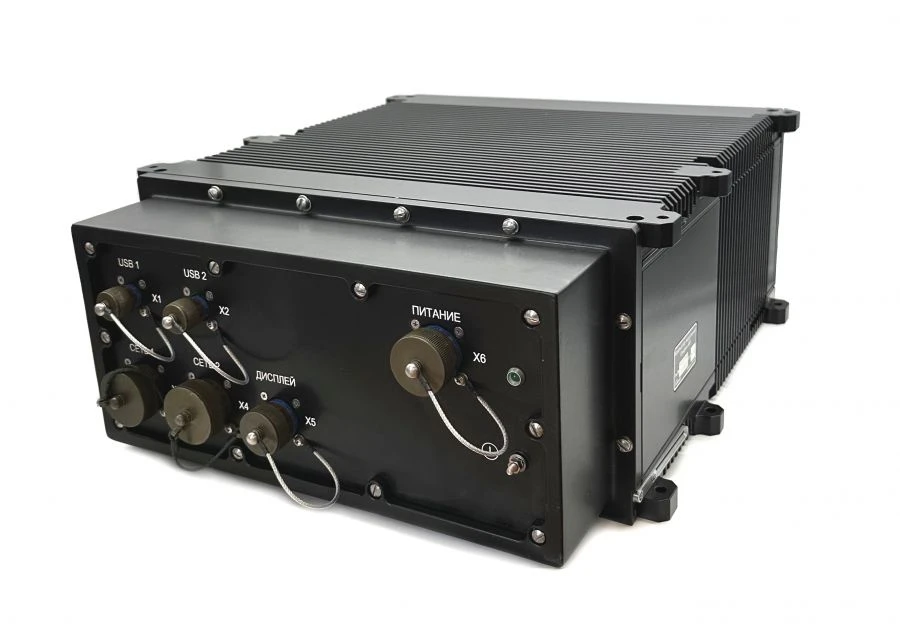

Kompyuter modular Gryphon-KM is a backbone-modular system based on the Compact PCI Serial specification with a module size of 3U. Gryphon-KM is intended for creation of small-sized protected computing complexes of special purpose for use on mobile and stationary objects. Gryphon-KM is oriented for use in real-time systems, production control and other systems for data collection and processing in harsh operating conditions that require reliability and information security.

Technical Specifications

Product composition	processor module CPC514RC-01; interface module KIC550RC-01; 19" housing ICC504
Processor	Elbrus-4C
RAM	DDR3-800 ECC, 2 channels, soldered, 8GB
Video output	DisplayPort resolution up to 1600x1200 output on "DISPLAY" connector
Ethernet interfaces	Two 10/100/1000 Mbit ports on "NETWORK 1" and "NETWORK 2" sockets.
Accumulators	32GB SATA II uSSD 32GB soldered on CPU module; 128GB, SATAII, MLC SSD drive in peripheral slot
Indication	Power indication LED
Software compatibility with OS	"Elbrus".
Power supply voltage	+27 ± 30 % (19 - 35 ?)
Consumption current	4000 mA
Operating temperature range	minus 40 °C to plus 55 °C
External influencing factors	Resistance to sinusoidal vibrations for frequencies from 10 to 150 Hz with acceleration of 6 g; resistance to single mechanical shock with peak acceleration of 50 g, duration of 3 ms; resistance to multiple mechanical shocks.
Degree of protection against penetration of solid objects, dust and water	IP65
Overall dimensions	Not more than (524±5) × (400±2) × (183±2) mm
Module weight	Not more than 26kg
Type of product according to PP RF 616	Computational electronic digital machines containing in a single housing a central processing unit and an input and output device, combined or not, for automatic data processing

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
