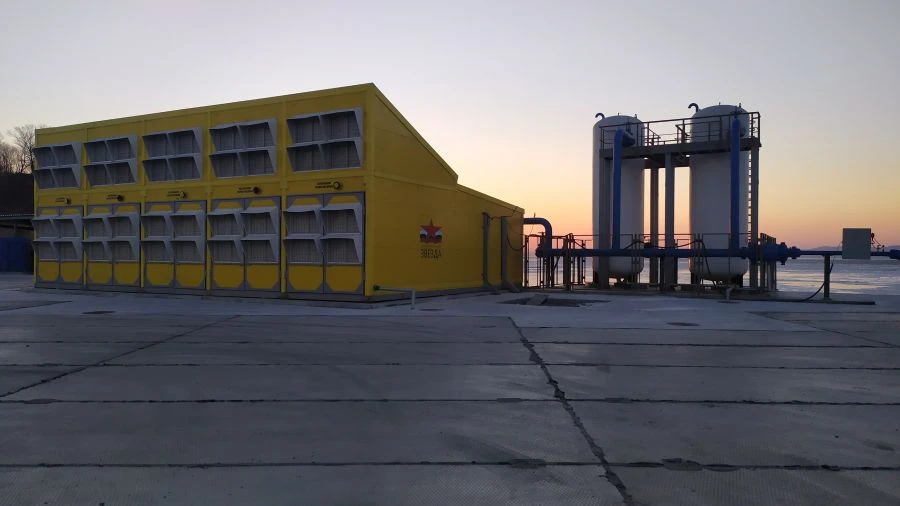

Modular Compressor Station for Compressed Air Production MKS 270/8-5-A

Modular compressor station (MCS) is designed for compressed air production. It is equipped with all necessary equipment for its subsequent cleaning and drying. Station capacity from 0.5 nm3/min, maximum overpressure at the outlet-40 MPa.

MKS are produced on the basis of screw, reciprocating and rotary-plate compressor units. The station operates in climatic conditions at ambient temperature from -40 to +40 °? (special version from -60 to +60 °?).

The ISS is equipped with a control system, which ensures automatic operation of the station without the presence of operating personnel. Control and management is carried out remotely. ISS is equipped with main and emergency lighting systems, security and fire alarm system, automatic fire extinguishing, high voltage reduction device (if necessary), climate control system to regulate the optimal operating temperature inside the station.
