Available for Import

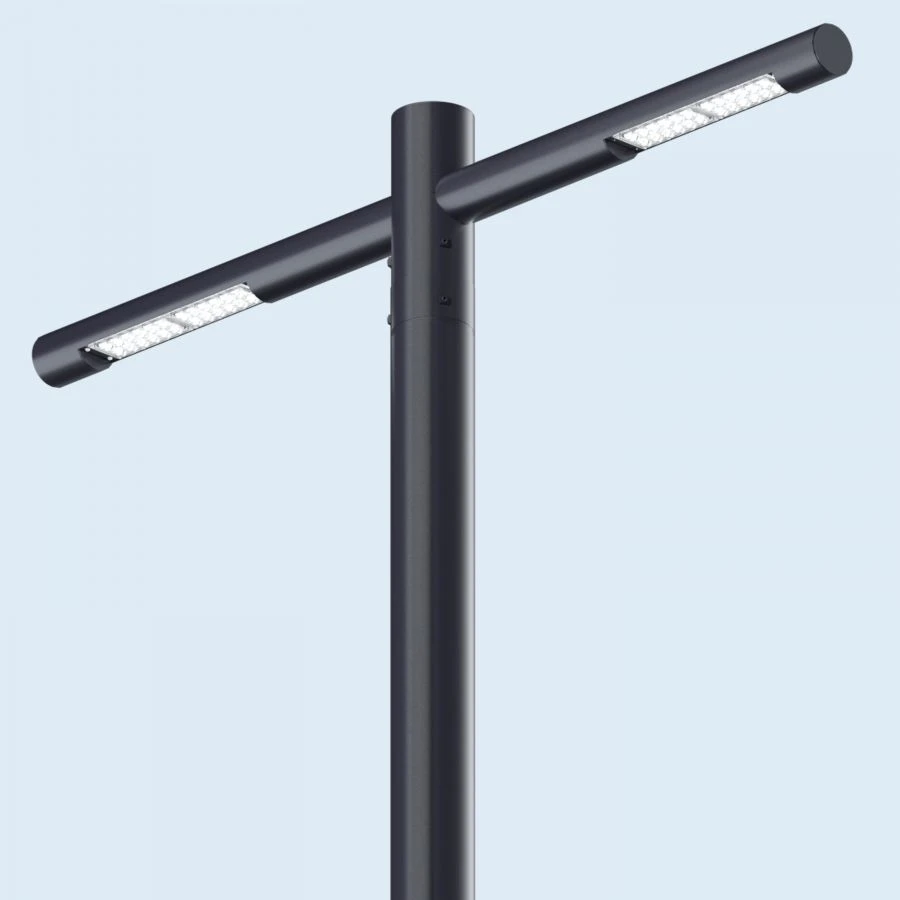

Modern LED Street Light LV-MAST 2x24 for Urban Lighting Solutions

LED Lighting Fixtures

Manufacturer: LEDVIZOR LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Modern, stylish and functional luminaire that is suitable for lighting urban roads, streets and other public spaces. The choice of one of six types of optics helps to solve different lighting tasks. The possibility of painting the luminaire in any colour according to the RAL Classic palette makes the device appropriate and aesthetic in public spaces.

Specifications

Type of product according to PP RF 616

Lighting fixtures and lighting fittings other than those included in other groupings

Color rendering index (CRI), not less than

Light output, lm/W, not less than

115

Degree of protection (IP)

IP66

Type by installation location

stationary, outdoor, pole-mounted

Climatic version

UHL1

Pulsation factor

5 %

Luminous flux, lm

12870...13970 lm

Upper operating temperature value

45 °C

Power consumption

110 W

Housing material

polymer-coated steel

Height

382 mm

Width

845 mm

Length

1823 mm

Net weight

19.2 kg

Lower operating temperature value

-40 °C

Protection class against electric current

Correlating color temperature (CCT)

2700...6500 K

Power factor

0.95

Rated supply voltage

230 V

Type of supply current

Variable

Designated service life

B1/B8 2100/900 MHz year

Warranty period of operation

5 year

Type of conditional light intensity curve in the equatorial plane

circularly symmetrical/axial/lateral/asymmetrical

Type of light intensity curve in characteristic meridional planes

L/S.

Light distribution class

Mains frequency

SBVVBG

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
