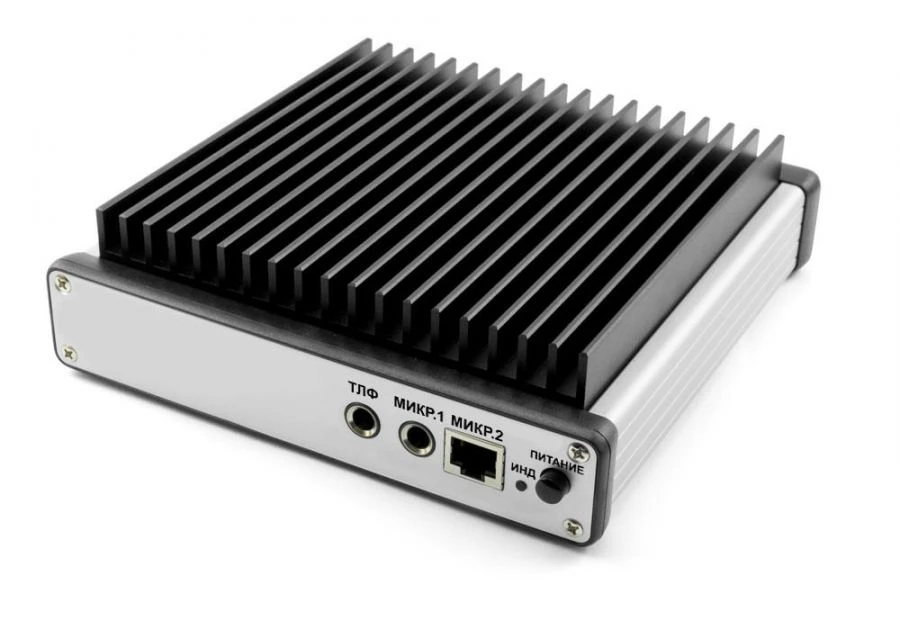

Modern Digital HF Transceiver Station "Aksimut-20" for Effective Communication

Communication Devices Hub

Manufacturer: RATEM LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Modern digital transceiver and transmitting station KV band frequencies, structurally designed as an attachment to a computer with an output power of 20 watts. The receiving and transmitting station is based on SDR technology (SDR - software-defined radio) and is a universal receiving and transmitting platform. The principle of direct digitisation of signals in the receiving mode and direct synthesis of radio signals in the transmitting mode (DDC/DUC technology) allows the station to be adapted to any task. The types of signals used and the transceiver's operating algorithm can be changed by modifying the software. Interaction with the user is carried out through the interface of the control programme.

Specifications

Receiving frequency range

1,6-30

Analog-to-digital converter (ADC) bit rate

Connection type

Computer console

Principle of construction of the receiving path

Direct digitisation of radio signals

ADC clock frequency

1.6...30

ADC digit capacity

Receiving frequency range

1.6...30

Sampling frequency of the received signal in the receive/transmit mode

200

Types of modulation

LSB, USB, DSB, CW, AM, SAM, NFM, WFM

Sensitivity at bandwidth value (0.5 ± 0.1) kHz, nominal input impedance value of 50 and (signal+noise/noise ratio)

3.0E-7 V

Number of independent receiving channels

1 pcs

Number of affected frequencies with intrinsic noise level exceeding the intrinsic noise level in the band (100 ± 10) Hz by at le

10 pcs

Single-signal dynamic range in the band 500 Hz, not less, dB ±3dB

130

Selectivity of the receiver on side channels of reception in the frequency range 0,15 - 300 MHz, not less

Flat grinder, Specialised grinder

Two-signal selectivity at interference rejection at frequency ± (100 ± 1) kHz when measured in the filter band 3.1 kHz, not less

100

Internal oscillator instability, max (optional)

±0.5×10(-6) (±5×10(-8))

Built-in receiver preamplifier with gain settings

Principle of transmitter signal generation

Straight synthesis

DAC clock frequency

640

DAC digit capacity

Transmitted frequency range

2...30

Level of nonlinear combinational distortion of the signal at the output relative to the level of the main oscillation (when a tw

-30

Maximum power output

20 ±2 W

Operating temperature range

0...40 °C

Limit reduced/increased temperature

– 40/+50 °C

Dimensions (DxWxH)

185x170x60 mm

Weight, not more

2 kg

Supply voltage range

12...16 W

Maximum current consumption

5.0 ±0.5 A

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
