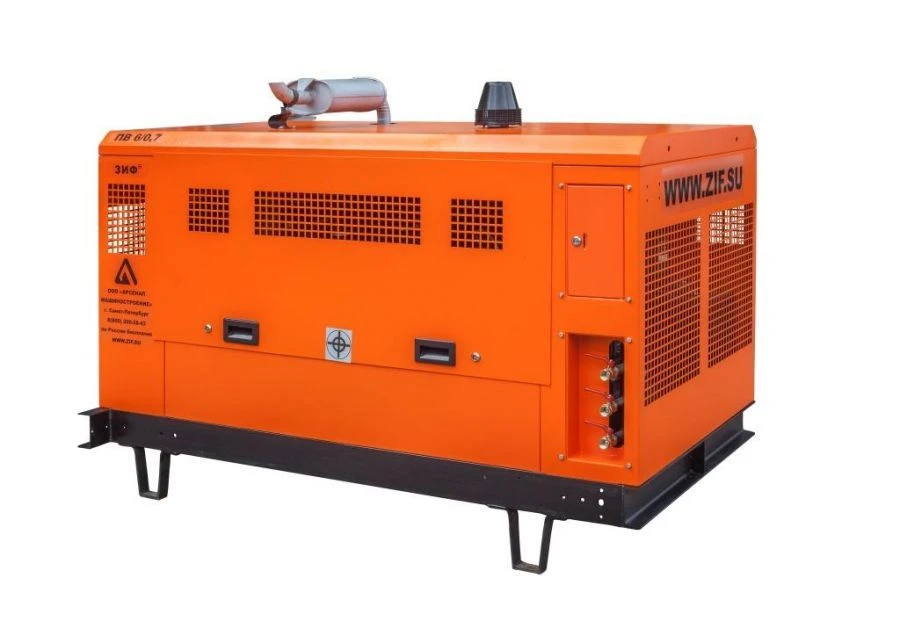

Mobile (portable) diesel compressor station ZIF-PV 8/0,7 (ARM9-22.1), on a frame
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Drive type: internal combustion engine (ICE)
Nominal volumetric capacity, nm3/min, not less - 8,0
Final working pressure (overpressure), MPa - 0.7
Compressible gas - air.
Operating temperature range:
a) from minus 25 to +40 in basic configuration
b) from minus 40 to +40 with "North" package
c) from minus 25 to +50 in the "Tropic" package.
Operating mode: automatic
Oil content in compressed air at nominal mode, g/m3, not more:
0,0035
Rated power, kW - 60
Overall dimensions (DxWxH), mm - 2000*1244*1478
Weight, kg - 1170.
Under TU 3643-003-76260790-2020 "Compressor stations mobile (portable) diesel ZIF-PV types: MZA, ARM, ARM-MXD, ARM-MKXD. Technical conditions." produces a range of single-type diesel mobile compressor stations ZIF-PV, types: MZA, ARM, ARM-MKSD, ARM-MKECD.
Technical Specifications
| Voltage | B1/B8 2100/900 MHz V |
|---|---|
| Noise level | 85 |
| Pressure | 0.7 MPa |
| Size | 2000*1244*1478 mm |
| Name | Compressor station mobile (portable) diesel ZIF-PV 8/0,7 (ARM9-22.1), on a frame |
| Assignment | for autonomous compressed air generation in autonomous conditions at open and closed production sites during construction; repair; road; mining; geological prospecting; rescue; emergency recovery and other works. |
| Capacity, not less, nm3/min | 8 |
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
