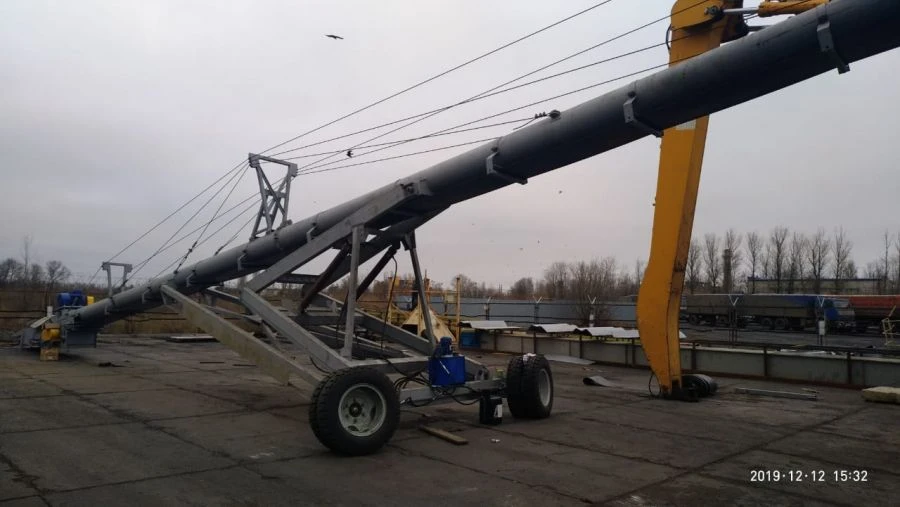

Mobile Belt Conveyor Model LT-50-2 for Efficient Material Transport

Mobile belt conveyors (LT and LTT) are designed to move bulk and packaged goods horizontally or at an angle. Conveyors have a lifting frame, which makes it possible to change the angle of inclination of the conveyor, lifting is done manually by a screw. The frame of the conveyor is a one-piece construction.

The conveyor of LT type is a mobile transport device of continuous action with a working organ - a conveyor belt moving on rollers. The conveyor is driven by a gearmotor from the AC network with frequency 50 Hz and voltage 380 V. When the drive is switched on, the conveyor belt moves on rollers, transporting the product coming to it from the filling hopper.

Product dumping takes place on the belt turning round the tension drum into the dumping head.
