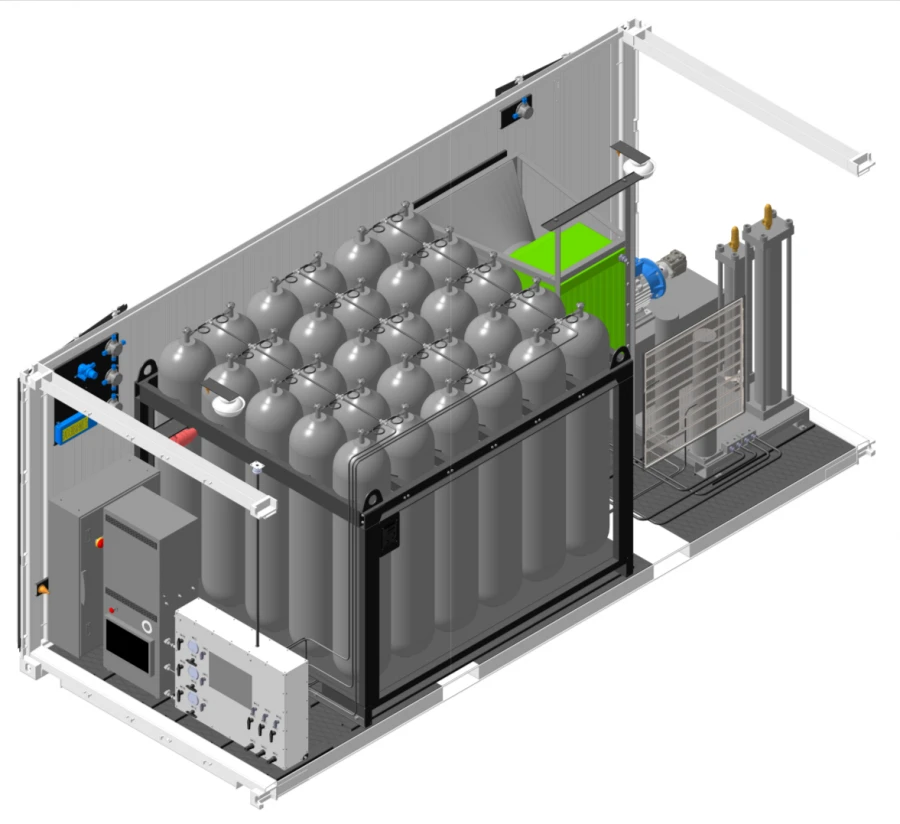

Mobile automotive gas-filling compressor station, model MAGNKS-200.30.00.00.00.00.
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description
Mobile gas filling compressor station is designed for storage, transportation of compressed natural gas and refuelling of motor vehicles.
At the first stage, fuelling is carried out by means of differential pressure, then fuelling is carried out by means of booster compressor.
The product shall be capable of performing the following operations:
? filling and storage of gas by accumulators;
? CNG transport to the refuelling point;
? refuelling of vehicles (in automatic and manual mode);
? measurement and registration of the dispensed gas;
? simultaneous fuelling of two vehicles;
? dispensing of gas through gas dispensers for road vehicles using kpg.
At the first stage, fuelling is carried out by means of differential pressure, then fuelling is carried out by means of booster compressor.
The product shall be capable of performing the following operations:
? filling and storage of gas by accumulators;
? CNG transport to the refuelling point;
? refuelling of vehicles (in automatic and manual mode);
? measurement and registration of the dispensed gas;
? simultaneous fuelling of two vehicles;
? dispensing of gas through gas dispensers for road vehicles using kpg.
Specifications
Compressible gas
Natural gas
Service life
20 a
Voltage
380 V
Operating medium
CNG according to GOST 27577-2000, compressed natural gas
Compressible gas
Natural gas
Receiver volume
5500 l
Explosion protection version
II Gb IIB T4 X
Rated motor power
20000 W
Discharge pressure
25 MPa
Compressor type
piston
Inlet pressure
5...22 MPa
Rotational speed
3000
Suction connection diameter
B1/B8 2100/900 MHz mm
Operating temperature range
-40...45 °C
Vehicle fuelling pressure
200
Gas pressure, piston compressor pressure
25 MPa
Overall dimensions of MAGNKS DxWxB
6056x2435x2590 mm
GVW without gas
13500 kg
Number of cylinders in MAGNCS
30 pc
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
