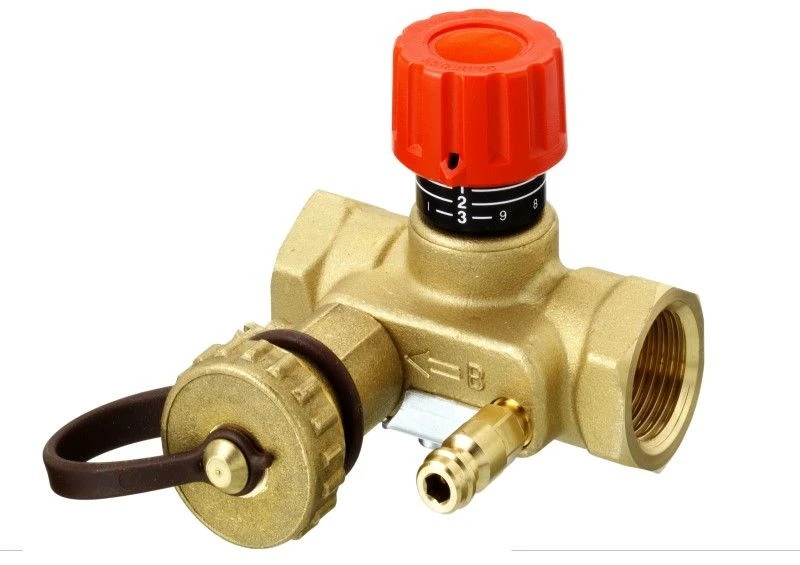

MNT type balancing valves
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description
The MNT type balancing valves are designed for use in heating and cooling systems in buildings. They should generally be installed in systems with constant hydraulic characteristics. They are not intended for contact with drinking water in domestic water supply systems.
MNT valves combine the functions of manually adjustable variable resistance valves and shut-off valves. MNT valves limit the maximum flow rate of the heating or cooling medium through a riser or installation. The MNT valves are equipped with a measuring nipple and a drain cock, also used for measurement, which allows the MNT valves to be adjusted according to the Danfoss PFM differential pressure and flow measurement device with temperature measuring function. MNT valves, unlike other valves, have compact overall dimensions, which allows for installation in tight spaces. For ease of operation, the spindle axis of all MNT valves is located p...
MNT valves combine the functions of manually adjustable variable resistance valves and shut-off valves. MNT valves limit the maximum flow rate of the heating or cooling medium through a riser or installation. The MNT valves are equipped with a measuring nipple and a drain cock, also used for measurement, which allows the MNT valves to be adjusted according to the Danfoss PFM differential pressure and flow measurement device with temperature measuring function. MNT valves, unlike other valves, have compact overall dimensions, which allows for installation in tight spaces. For ease of operation, the spindle axis of all MNT valves is located p...
Specifications
Climatic version
Category 3 according to GOST 15150-69
Material
Brass (for housing)
Weight
0.31 kg
Mark
Danfoss trade mark
Pressure rating
1.6 MPa
Equipment
valve; insulating shell; instructions; passport (on request in electronic form); operating manual (on request in electronic form).
Steel grade
Brass (for housing)
Type
Brass, coupling
Designation
MNT type balancing valves
Gate tightness (leakage volume / tightness class)
Leakage class D according to ISO 5208
Joining
Female thread
Flow capacity, Kvs
1.6 to 16
Medium temperature
-20 to + 120 °C
Transported medium
Water and aqueous glycol solutions for systems
Nominal diameter
15 to 50 mm
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
