MKT Pump and Filtration Module (TS-1) for Efficient Aviation Fuel Management

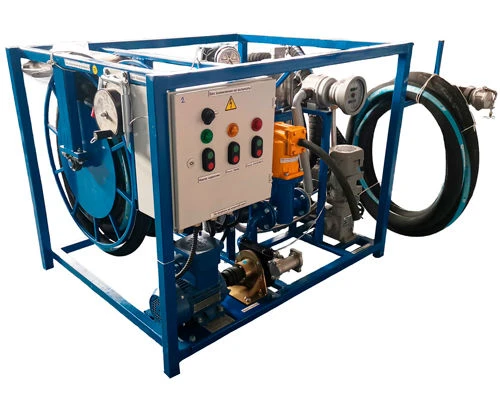

MKT pump-filtration module (TS-1) 380.100.0,25.25.3 (fuel filtration unit, AFT) is designed for: aircraft refuelling from ground tanks; filtration of aviation fuel with water separation; fuel accounting by volumetric method; dosed injection of anti-crystallisation liquid (ACLF). The AFT module is optional and must be purchased separately. The main AFT module has the following characteristics:.

Capacity: 100 l/min. Power consumption: 2.2 kW. Voltage: 380V (optional 220V).

Coarse filter: 100 microns. Fine filter with water separation: 3 microns. Volumetric fuel metering with mechanical counting device: 0.25 per cent.

Operating temperature from -40 to +45C. The main AFT module includes:. Electric pump unit.

Fuel filtration and water treatment system.... Mechanical counter. Shut-off valves...

Exd explosion-proof control cabinet with heater. All flow parts are made of stainless steel or aluminium.
