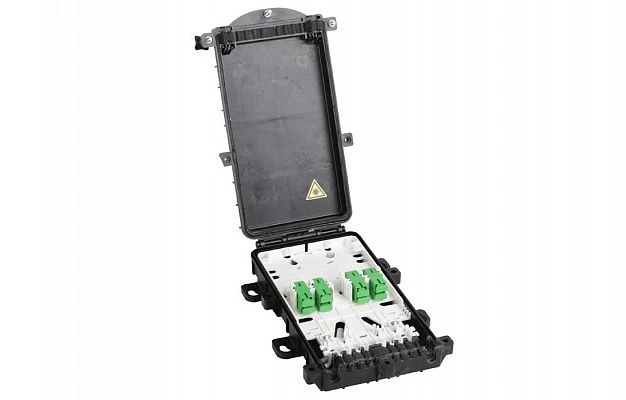

MKO-P Cross Connector for Suspended Cable Systems

Available for Import

MKO-P Cross Connector for Efficient Cable Installation in Networks

Cable Accessories

Manufacturer:SSD OJSC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The MKO-P1/A dead-end coupling is designed for installation of suspended trunk cable with subscriber branches of self-supporting drop cables of small diameter. The peculiarity of all MKO couplings with the letter "A" is the presence of a strip or sockets inside for installation of adapters. It allows to use terminated subscriber drop cables and to carry out cross-switching.

Specifications

Width

159 mm

Height

46 mm

Type or grade of material

Armlen

Equipment

Enclosure with cover, KDZS 4525 sleeves, Mounting plate (insert), L2-SP spacer, SC/APC adapters, SC/APC pigtails, Ties, markers

Designation

ICE-P

Type

Dead end

Profile

Rectangular container

Max. number of plug-in connections

10 pcs

Type of adapters

Max. number of welded joints

NZ-150-14,5 pcs

Sealing material

Elastomer

Operating temperature

-60…+70 °C

Length

247 mm

Weight

0,6 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
