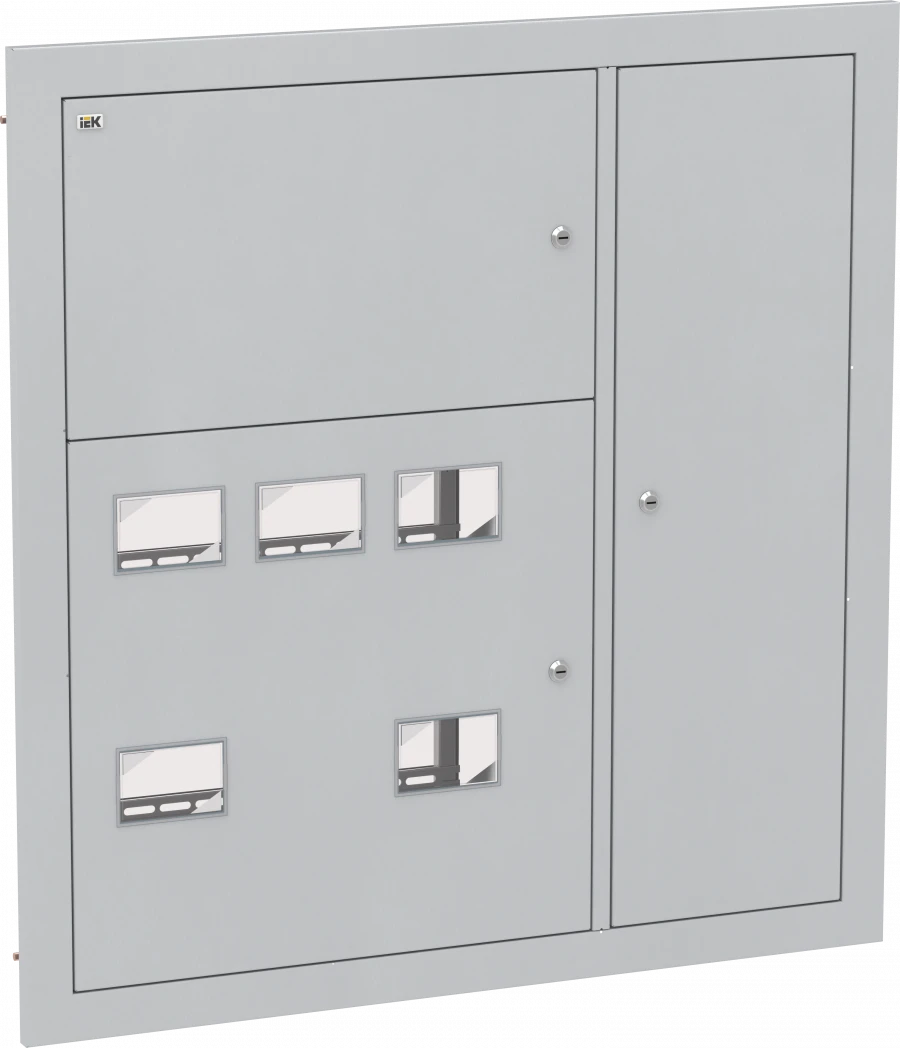

MKM42-05-31 Metal case ShchE-5-1 36 UHL3 IP31

It is used for assembly of floor distribution boards, designed to receive and distribute electricity in residential and public buildings, as well as for the protection of outgoing lines at overloads and short circuits.
The welded metal case consists of three compartments: input and accounting, distribution, low-current equipment compartment.
In the input-metering and distribution compartments in ShchE-X-1 enclosures there are perforated strips for fastening of counters (according to the number of flats), in ShchE-X-6 enclosures there is a removable mounting plate. Perforated strips for fixing the counters (according to the number of flats) are placed in the input and accounting and distribution compartments. It is possible to install a main line disconnection device in the same compartment.
DIN-rails for group line devices and elements for installation of N and PE busbars are installed in the distribution compartment. The compartment is equipped with an operating panel.
The low-current equipment compartment is equipped with perforated profiles for laying TV and radio networks, telephone lines, security alarm networks, intercoms, etc..
