Available for Import

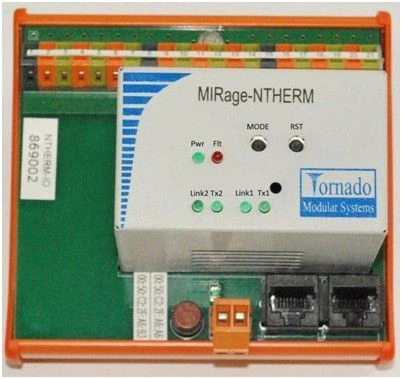

MIRage-NTHERM thermocouple signal conversion devices

Data Processing Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

The MIRage-NTHERM devices are designed to measure temperatures using thermocouples (TP) and transmit the measured values via redundant digital interface Ethernet 10/100 over twisted pair using ModBus protocol. The MIRage-NTHERM devices have 8 measuring channels (IR). The interface of each IC assumes connection of TP types: ??? (L), ??? (K), as well as any other types according to GOST R 8.585-2001 with downloading of conversion tables on request. The device is equipped with an internal temperature meter of thermocouple terminals (cold junction) and a circuit for detection of TP connection circuit breakage. The devices have one additional internal reference channel for internal automatic calibration.
MIRage-NTHERM devices are designed to create automated process control systems (APCS) in various industries.

Technical Specifications

Architecture	autonomous distributed I/O with redundant ethernet communication
External connectors	2 rj-45, +24v power supply, spring terminals for signal cable
Form factor	din-35 rail mount
Signal-to-noise ratio	Flat grinder, Specialised grinder
Power Type	+24 dc
Base frequency of the processor	0.1
Number of measuring channels	8 pc
Polling time	2
Data exchange protocol	modbus udp/tcp slave
Power consumption	2.5 W
Galvanic insulation	Group
Dimensions width	114 mm
Weight	400 g
Type of measuring channels	сигналы термопреобразователей термопар
Height	108 mm
Data transfer rate	100
Number of processor cores	1 pc

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
