Mini wall-mounted studio MSR.N VABM.465287.015

Telecom Equipment

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

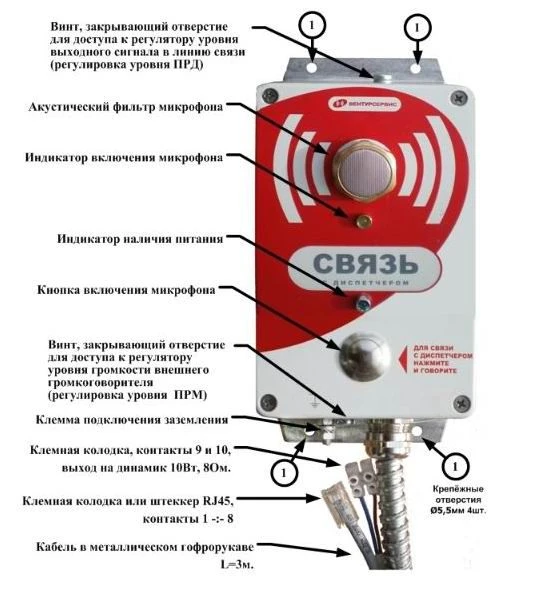

Mini-Studio wall mounted MSR.N VABM.465287.015 is one of the terminal links of the trunk communication equipment of meetings, as well as operational dispatch communication and is designed for high quality reception and transmission of voice information when connected to a four-wire line PM (channels PRM and PRD).
The product is made in a metal case resistant to external mechanical and climatic influences. It is allowed to operate the product in the open space, as well as in production rooms and shops of enterprises with severe climatic conditions - low, high temperature, high humidity, dustiness.
It is not allowed to operate the product in the presence in the atmosphere of aggressive and explosive compounds and their vapours, as well as sea fog.

Technical Specifications

Maximum power consumption	22 W
DC supply voltage	12V to 24V
Communication line	4-wire
Entry and exit	Symmetrical, R=600 Ohm
Nominal PPM levels	-13/0 dB
Nominal levels of PDPs	-13 / +4.3 dB
Maximum output power at Up=24V, Rn=8 Ohm	9 W
Maximum output power at Up=12V, Rn=8 Ohm	4 W
Level adjustments: by reception	-60...0 dB
Level adjustments: by gear	-13 ... +4.3 dB
-13...+4,3 dB	microphone dry contact on terminal block
Contact characteristics: maximum switching current	1?
Contact characteristics: maximum switching voltage	100?
Overall dimensions (without connection cables)	200x100x65mm
Execution	IP63
Product composition	1. Mini wall-mounted studio MSR.N VABM.465287.015; 2. It is possible to equip the product with acoustic systems of horn, wall, ceiling or protected version*; 3. It is possible to supply a power supply unit for this product or for the whole c

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
