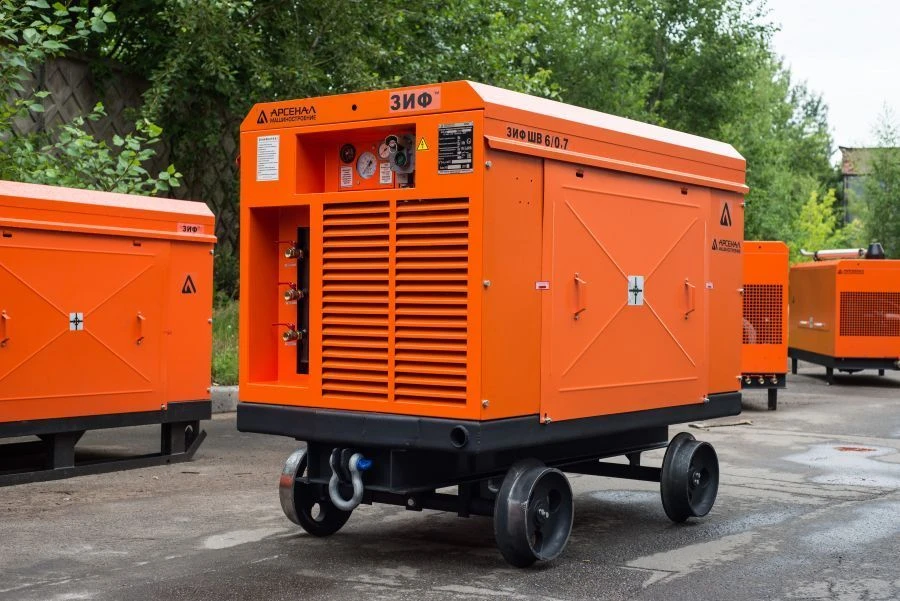

Mine air-compressor station ZIF-SHV 7,5/0,7 (ARM18-45), (660; 380 V, on skids)

Screw Compressor Units

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Compressor type: screw.
Purpose: for generation of compressed air for supply of local pneumatic networks of industrial enterprises of mining and mining industry (coal mines, potash mines, mines).
Drive type: explosion-proof electric motor.
Nominal volumetric capacity, nm3/min, not less: 7.5
Final working pressure (overpressure), MPa: 0.7
Compressible gas: atmospheric air
Operating temperature range, 0?: from minus 5 to +35
Oil content in compressed air at rated mode, g/m3, not more: 0.0035
Rated power, kW: 45
Operating mode: automatic
Overall dimensions (DxWxH), mm - 1850*1050*1306
Weight, kg, not more: 1000

Within the framework ofTU 3643-012-76260790-2018 "Air-compressor mine stations types: ZIF-SHV (ARM18), ZIF-SHV T (ARM18 T), ZIF-SHV (ARM19), ZIF-SHV T (ARM19 T), ZIF-SVE (ARM19), ZIF-SVE T (ARM19 T). Technical conditions." a line of single-type mine air-compressor stations of the following types is produced: ZIF-SV (ARM18), ZIF-SV.....

Specifications

Noise level

Voltage

380 V

Receiver volume

Receiver not included in the station

Size

1850; 1050; 1306 mm

Assignment

for the production of compressed air (or nitrogen) to supply local pneumatic networks of industrial enterprises of mining and ore mining industry (coal mines; potash mines; mines).

Name

Mine air-compressor station ZIF-SHV 7,5/0,7 (ARM18-45), (660; 380 V, on skids)
