SF676 Milling Machine for Flat and Shaped Surfaces, Model SF676-300/5-40AT5-0-0-TR

Available for Import

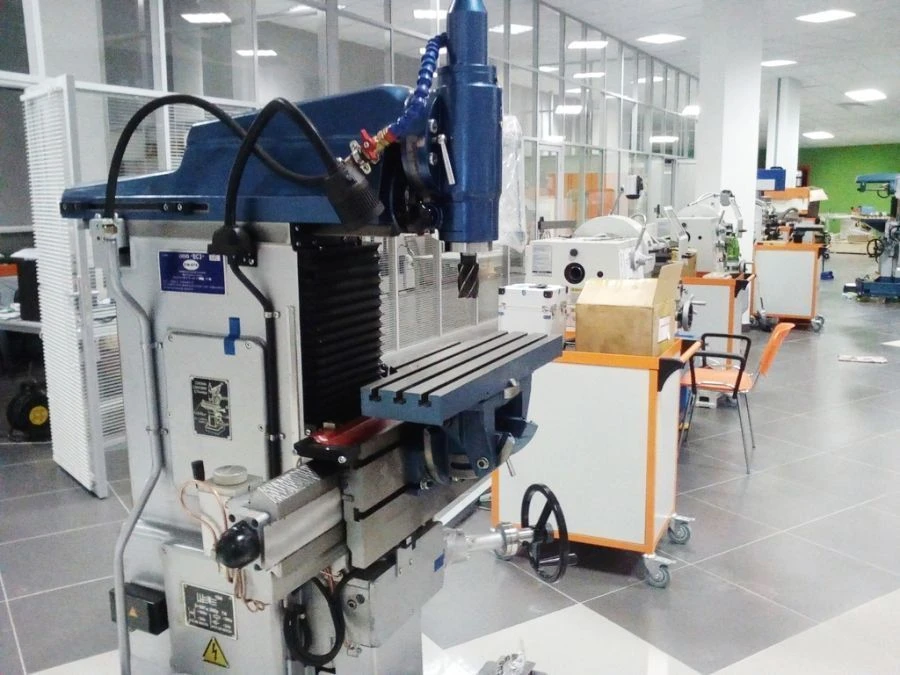

SF676 Milling Machine for Flat and Shaped Surfaces - Versatile Precision Tool

Metal Milling Machines

Manufacturer:VSZ LLC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Milling machine SF676-250/3-40AT5-0-0-0-SWP Milling machine SF676-250/3-40AT5-0-0-0-TR Milling machine SF676-250/4-40AT5-0-0-0-SWP Milling machine SF676-250/4-KM4-0-0-0-TR Milling machine SF676-250/4-40AT5-0-0-0-TP

Milling machine SF676-250/3-KM4-0-0-0-SWP Milling machine SF676-250/4-KM4-0-0-0-SWP Milling machine SF676-300/5-40AT5-0-0-0-SWP Milling machine SF676-300/5-KM4-0-0-0-TP Milling machine SF676-250/3-KM4-0-0-0-TP

Description

The SF676 machine tool allows performing various operations: milling of flat and shaped planes, drilling, tapping, centring, counterboring, boring, chiselling, marking and other types of work. The machine can be used to machine parts of the most complex configurations in various materials and with high precision. On the machine can be used a huge variety of tools and accessories.

Specifications

Type of product according to PP RF 616

Milling machines

Type

universal

Milling speed

1000

Longitudinal travel of the milling head

450 mm

Transverse travel of the milling head

300 mm

Length

1200 mm

Width

1240 mm

Height

1780 mm

Length of machined surface

800 mm

Working width

300 mm

Weight

1050 kg

Vertical table width

300 mm

Moving the X axis

450 mm

Moving theY axis

300 mm

Z-axis movement

380 mm

Power

3.12 kW

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
