MidCura series closed circular sheathed conductors for rated voltages from 6 to 10 kV, rated current from 1600 to

Designed to perform electrical connections at power stations and substations and

installed in AC circuits with frequency 50 and 60 Hz, voltage up to 10 kV.

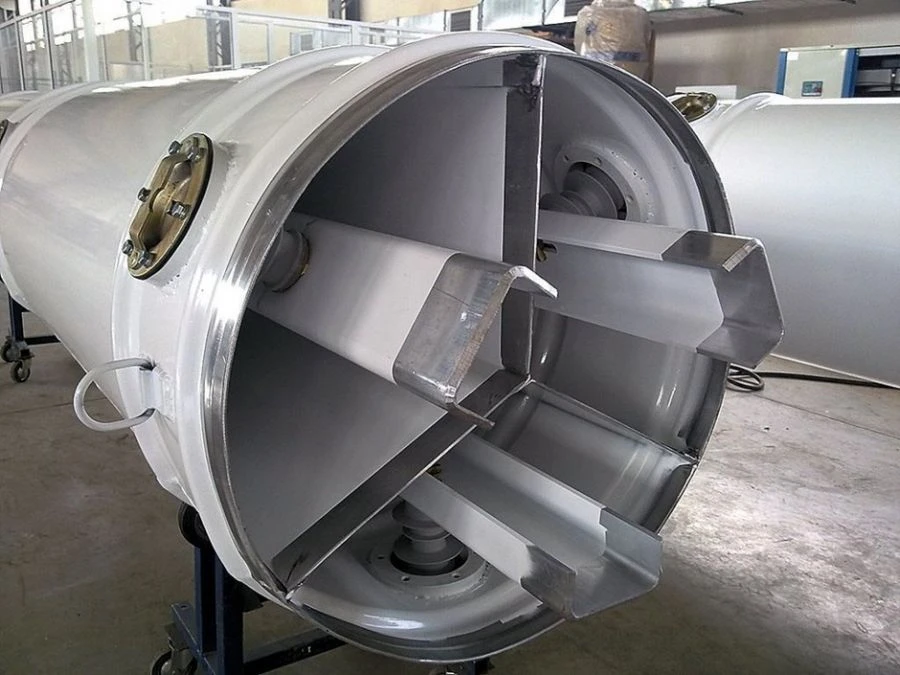

Consists of a sheath common to the three phases and conductor busbars of the appropriate profile and

cross-section. The busbars are fastened to the insulators inside the sheaths at the vertices of an equilateral section.

triangles by means of special busbar holders. The addition of phase-to-phase busbars is possible

partitions, to eliminate the possibility of single-phase faults to the sheathing in the

inter-phase short circuit.

The advantage is the high reliability and the prescribed service life of the conductors of 40 years.

Products are manufactured to order according to technical specifications.
