Available for Import

Microprocessor BE-M1000

Electronic ICs

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

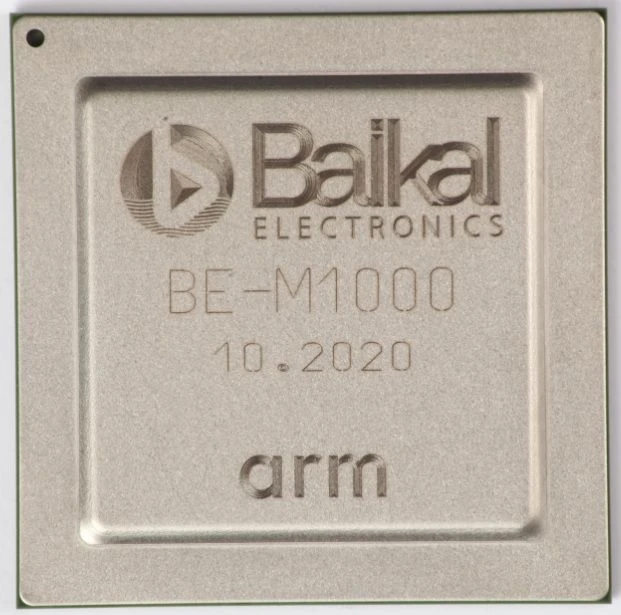

A domestic system-on-chip with 8 ARM Cortex-A57 cores, 8-core Mali-T628 GPU and a large set of high-speed interfaces. The state-of-the-art high-performance BE-M1000 Microprocessor is designed for a wide range of target devices in the consumer and B2B segments.
Advantages of the announced products include: domesticity, energy efficiency, support for domestic Linux-based software, and the availability of an ecosystem of software and hardware solutions

Technical Specifications

Case	FCBGA-1521, 40x40 mm, 1521 pins, 1 mm pin pitch
Technology	CMOS, 28 nm
Operating frequency	1500
Designation	BE-M1000
Processor clusters based on Armv8-A architecture	Eight Arm Cortex-A57 cores up to 1.5 GHz
GPU	Arm Mali-T628 with 8 shader cores (two quad-core clusters) up to 750 MHz
L3 level cache of coherent system bus	8
RAM subsystem	Two 64-bit DRAM DDR4-2400/DDR3-1600 interfaces with error correction support (ECC)
Power consumption	Built-in memory card slot, support microSD/SDHC/SDXC card (up to 256GB); manual recording/alarm recording W
High-speed interfaces	Three PCIe Gen3 subsystems: one PCIe x8 and two PCIe x4; Two USB 3.0 and four USB 2.0 interfaces; Two SATA 6G subsystems; Two 10 Gb Ethernet interfaces (10GBASE-KX4/10GBASE-KR); Two 1 Gb Ethernet controllers (RGMII); eMMC/SD/SDIO interface.
Low-speed interfaces	GPIO: 32 lines; Two UART ports; One SPI port; One eSPI port; Two I2C ports; Two SMBus ports
Multimedia	LVDS video controller; HDMI 2.0 video controller; HD video decoder; One I 2S port
Safety	Support Arm TrustZone; Two TrustZone controllers; Hardware support for trusted boot
System monitoring and debugging	Five PVT sensors; Arm CoreSight™ Debug and Trace System

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
