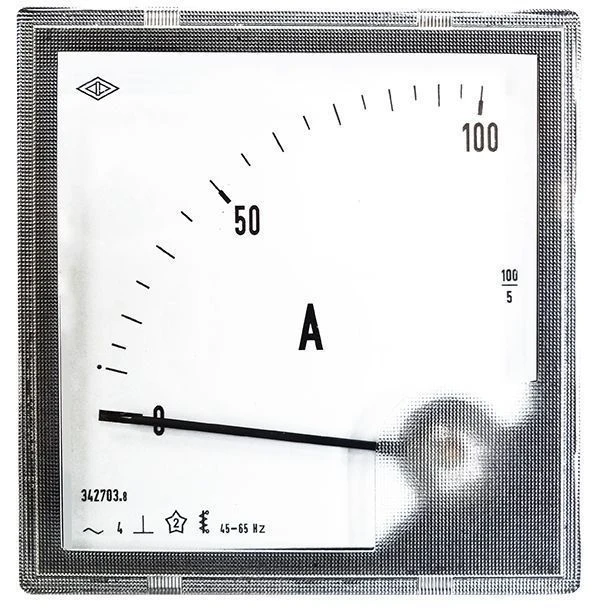

Microamperometer, Milliammeter, Ammeter, and Voltmeter E42703.8

Available for Import

Microamperometer, Ammeter, Voltmeter E42703.8 for Electrical Current and Voltage Measurement

Panel Analog Measuring Instruments

Manufacturer:ELECTROPRIBOR OJSC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The E42703.8 instruments are designed to measure current and voltage in alternating current electrical circuits and are used in various industries. The dials and scales of the instruments are made in accordance with Din 43802. E42703.8 are included in the State Register of Measuring Instruments of the Russian Federation. Interverification interval is 2 years.

Specifications

Dimensions of the front panel, mm

96x96

Panel cutout, mm

92x92

Accuracy class

4,0

Degree of protection IP

Dustproof IP50

Weight, kg, not more

0,35

Operating temperature range

-40... +50 º?

Measuring range (connection via current transformer with 5 A secondary current)

A - 10; 30; 50; 75; 100; 150; 200; 250; 300; 400; 600; 800; kA - 1.5; 2; 3; V - 500

Scale length, mm, not less

Save Your Time

Share your requirements for a quick response!

Looking for

Quantity

Your mobile

Instant response in 15 minutes

Best wholesale prices guaranteed

Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, RussiaCIF Available to major ports worldwideEXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C)Wire Transfer (T/T)Escrow Services
