Methane alarm device SMS-15EK, combined with head lamp

Gas and Smoke Analysers

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

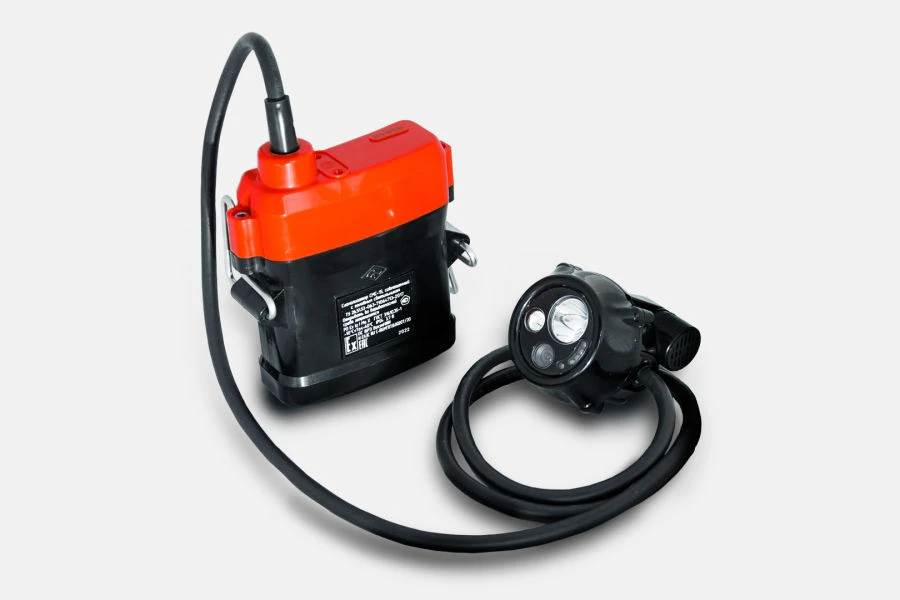

Methane alarms SMS-15EK, combined with head lights and built-in video cameras - portable, thermochemical, designed for individual automatic measurement of the volume fraction of methane in the atmosphere of mine workings, the issuance of audible and / or light alarms in case of exceeding the preset level of the volume fraction of methane (threshold) and individual lighting and video recording of the workplace.

Specifications

Explosion protection marking RO Ex ia I Ma X

Measuring range 0.00 to 2.50 % methane volume fraction

Threshold setting range From 0,50 % to 2,00 % of methane volume fraction

Alarm release threshold setpoint 2.00 % methane volume fraction

Limits of permissible basic absolute error of measurement (triggering) 0.20 % methane volume fraction

Alarm activation time Not more than 12 seconds

Type of light source LED light sources: main and auxiliary light sources

Maximum illuminance at the evaluation area during the useful working period at factory settings Not less than 6000 lx

Continuous operation time without recharging the power supply unit At least 10 hrs

Operation time of the radio notification device Not less than 36 h

Battery used Li-ion

Weight of the signalling device without radio warning devices Not more than 1.2kg

Overall dimensions of the signalling device (battery housing/headlight) Not more than 152*139*51 / 78*80*82 mm

Operating conditions Ambient temperature - from -10 to +40 C. Relative humidity at temperature 35 C not more than 100 %. Atmospheric pressure from 87.8 to 119.7 kPa (660 to 900) mm Hg.

Video mode Adjustable video resolution: 1920 1080p/1280 720p/840 480p. Viewing angle of the camcorder is not less than 80 degrees. 64GB memory card support for data storage.

Average MTBF Not less than 10000 h

Assigned service life 5 years

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
