Metal warehouse shelves of TCU series (height - 1800-4000 mm, width - 700-1500 mm, depth - 300-800 mm)

Metal Shelving and Racks

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

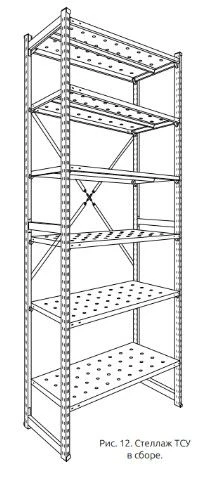

The TSU racks are designed for storage of piece goods, and can also be used in the equipping of warehouses, storages and other premises. They consist of racks made of metal U-shaped profile 27x47 mm with perforation, metal shelves (solid or perforated), length 700 mm, 1000 mm, 1200 mm or 1500 mm (fixed to the racks with special brackets), ties-supports, cross bars, cross brackets, stiffeners, cross brackets and semi-cross brackets.
Also racks of TCU series can be equipped with clothing racks and ties (beams) for installation of metal solid decking, metal perforated, metal lattice, plywood, chipboard and other types of decking. Without decking, car tyres can be stored on racks equipped with ties (beams).
Racks of TCU series have several sizes:
Rack height - 1800 mm, 2000 mm, 2200 mm, 2500 mm, 3000 mm, 3500 mm, 4000 mm;
Length of one racking section - 700 mm, 1000 mm, 1200 mm, 1500 mm;...

Specifications

Type of racking Shelf

Rack type Unilateral

Rack connection Boltless

The presence of stiffening ribs Armoured glass

Presence of perforations on the vertical post (frame) Armoured glass

Perforation pitch 45 mm

Number of sections 1...100000000000000 pc

Number of shelves per section 3...43 pc

Rack height 1800...4000 mm

Rack section length 700...1500 mm

Rack section depth 300...800 mm

Maximum load per shelf 150...300 kg

Type of installation Stationary

Type of product according to PP RF 616 Racks, racks, metal hangers

Type of housing material Metal

Maximum load per section 1800 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
