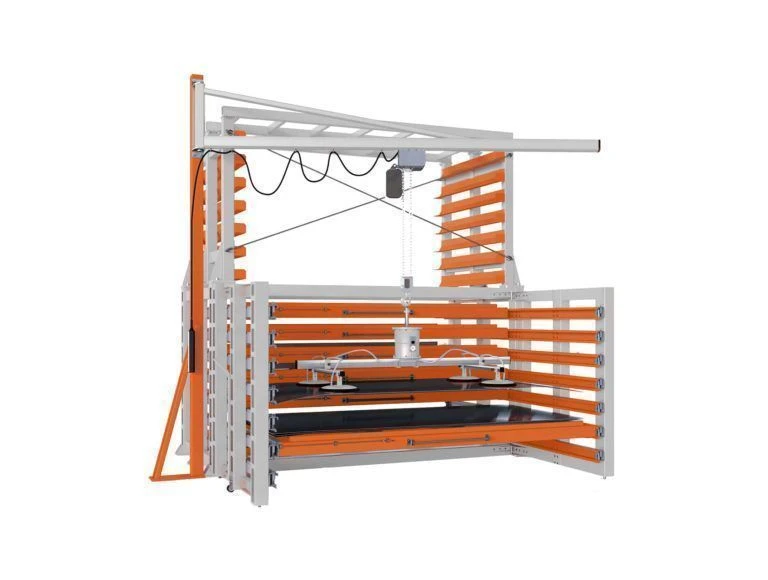

Metal storage rack "Shafl" 2000x1000

Collapsible racks of "Shafl" series are designed for storage of various products in closed type premises on shelves of rack tiers. The rack is a welded metal structure. Storage of sheet material is carried out on the shelves, which are loaded by forklift. The rack for storage of sheet material is serviced with the help of a forklift. For this purpose, a shelf with dimensions for the forklift was designed. The rigidity and strength of the shelf allows it to withstand the required load of the stored sheet metal without deformation and damage to the structure.

Main parameters and technical characteristics of the devices:
Sheet size DxW, m : 2x1
Number of shelves, pcs:
5 sliding 4 fixed
Shelf loading capacity, kg: 3000
Shelf loading height, mm:: 80
Length, mm: 2680
Width, mm: 1540
Height, mm:: 3118
Weight, kg: 3342
