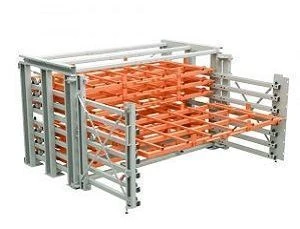

Metal storage rack "Drover" 3000x1500

Racks prefabricated and collapsible series "DROVER" are designed to store a variety of products in closed rooms on shelves tiers of the rack. The rack is a welded metal structure. Storage of sheet material is carried out on shelves, which are loaded by forklift. The rack for storage of sheet material is serviced with the help of a forklift. For this purpose, a shelf with dimensions for the forklift was designed. The rigidity and strength of the shelf allows it to withstand the required load of the stored sheet metal without deformation and damage to the structure.

Main parameters and technical characteristics of the devices:
Sheet size DxW, m : 3x1,5
Number of shelves, pcs: 5
Shelf loading capacity, kg: 3000
Shelf loading height, mm:: 80
Length, mm: 3575
Width, mm: 1750
Height, mm::: 1932
Weight, kg: 2786
