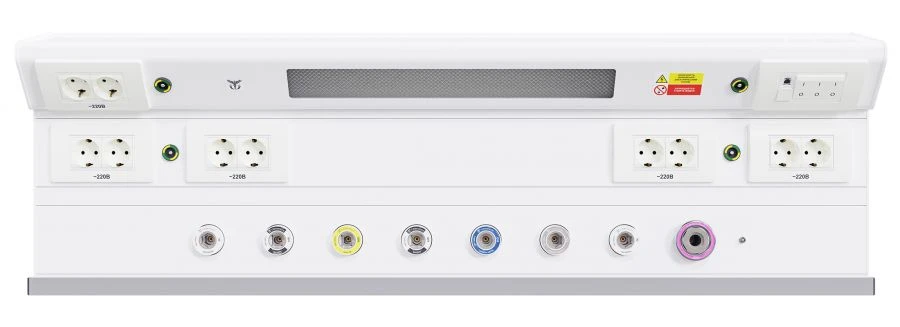

Medical wall console Caduceus (CADUCEUS) CN4

The CADUCEUS CN4 bedside medical console is an ideal solution for intensive care and intensive care wards, anaesthesia and post-operative wards - it is designed to supply as many medical gases and power as possible, as well as to organise lighting near the patient's bed.

CADUCEUS CN4 wall consoles can be equipped with medical gas quick connectors, 220V electrical sockets, safety connection sleeves, light switches, communication connectors for nurse-patient communication and data transfer, as well as different types of overhead, direct, night lighting fixtures and a medical rail for attaching various medical equipment (clamps, rod holders, observation lamps with flexible tripod, etc.).

The console can be fitted with up to 8 DIN 13260-2 quick release gas valves for the following gases:

oxygen;
vacuum;
compressed air;
nitrous oxide;
carbon dioxide.
It is also possible to install an AGSS connector for anaesthesia gas exhaust and an AIR-Motor connector for compressed air supply to operate pneumatic tools.

The console is made of aluminium with polyester powder coating. The basic colour used in wall consoles is transport white (RAL 9016). At the customer's request, any other colours can be used, both for the whole console body and its individual elements (side and front covers)..
