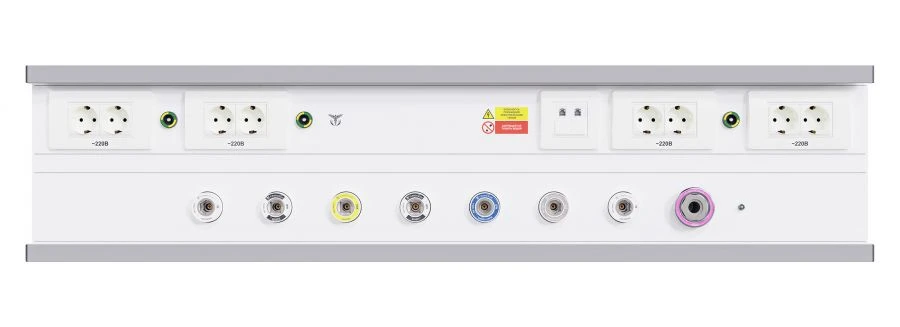

Medical wall console Caduceus (CADUCEUS) CN3-2

The CADUCEUS CN3-2 medical gas supply consoles are indispensable in intensive care wards where power supply and medical gases (including for pneumatic tools and anaesthesia gases) are needed near the patient's bed.

CADUCEUS CN3-2 wall consoles are designed for the convenience of medical professionals and can be equipped with DIN 13260-2 standard quick-connect medical gas connectors (for oxygen, vacuum, compressed air, nitrous oxide and carbon dioxide), 220V electrical sockets, protective connection sleeves. Equipped with communication connectors for communication "nurse-patient" and data transfer, as well as two medical rails, allowing the installation of monitors, lights and other devices, allow medical staff to monitor the patient's condition. It is also possible to install an AGSS connector for anaesthesia gas venting and an AIR-Motor connector for the supply of compressed air for the operation of pneumatic tools.

The console is made of aluminium with polyester powder coating. The basic colour used in wall consoles is transport white (RAL 9016). At the customer's request, any other colours can be used, both for the whole console body and its individual elements (side and front covers)..
