Available for Import

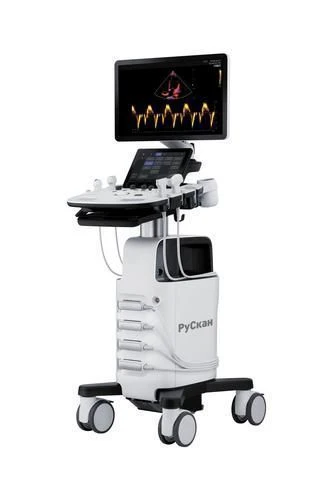

Medical ultrasound diagnostic system "RuScan 60" according to TU 26.60.12-002-98204792-2017 with accessories

Ultrasound Diagnostic Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Designed for the formation of real-time echograms to obtain clinical information on the location, shape, structure, geometric dimensions of human organs and tissues by ultrasound location and measurement of blood flow velocity based on the Doppler effect.

Versatile ultrasound scanner with high resolution, advanced imaging and post-processing technologies. Assessment of tissue elasticity, advanced 3D/4D/5D scanning capabilities, a set of options for expert cardiological studies, including the module of semi-automatic assessment of myocardial contractility of the left ventricle of the heart, allow recommending the use of RuScan 60 device in diagnostic centres, multidisciplinary and specialized medical institutions, medical research institutes.

Technical Specifications

Service life	5 years.
Length of warranty period	12 months from date of shipment.
Waste class according to SanPiN 2.1.7.2790-10	A and B.
Software security class	?
Characteristics of a dedicated medical LCD monitor	Anti-reflective coating; Possibility of user adjustment of monitor parameters (brightness, contrast); Screen diagonal size not less than 21,5 inches; Resolution not less than 1980x1080 pixels; Frame rate 60 Hz; Viewing angle: 120° left/right; 90° left/righ
Characteristics of the touchmonitor	Number of pixels - 1280 x 800; 10.1-inch LCD monitor (with LED backlight, hereinafter referred to as).
External signal connections (ports)	HDMI(output); USB (for connecting USB peripheral devices); Network connector (for LAN connection, patient data can be transferred to other servers via DICOM); S-VHS (output for connecting S-VHS VCR); Audio output; Port
Depth	730 mm
Width	520 mm
Height	1620 mm
Gross weight	95 kg
Net weight	57 kg
Amplification	0-100
Working part type	Ultrasound transducers shall be type BF; ECG leads shall be type CF with defibrillation protection.
Physiological signal detection channel	Input voltage range from 0,2 to 5 mV; input impedance not less than 10 Mohm.
Number of tricks	1-4 focals
Maximum scanning depth	38 cm
Adjusting the signal gain	Total and 1 - 8 zones.
When operating in the Doppler spectrum mode, ensuring simultaneous audio playback in the selected resolution strobe	Available.
Dynamic range of received signals	30 to 256 dB
Power adjustment	2 to 100 per cent
Performing a self-test to verify operation at power-on	Available
Mode of operation	Continuous (more than 8 hours).
Time to establish operating mode	Less than 3 min.
Degree of safety for use in the presence of flammable anesthetics with air, oxygen or nitrous oxide	Not intended
Sound power level generated by the system	Does not exceed 55 dB
Protection against electric shock	Class I
Rated power consumption value	620
Rated mains frequency	SBVVBG
Rated mains voltage	220 V
Operating conditions	10 to 35 Cº and relative humidity of ambient air not more than 80 % at 25 Cº.
Storage conditions	In storage rooms at temperature from minus 50 to 40 °? and relative humidity not more than 75 % at 15 °?.
Transportation conditions	From minus 50 to 50 °?, relative humidity 75% at 15 °? in covered vehicles: by road transport for a distance up to 1000 km; in railway wagons up to 10000 km; by aeroplane, in heated sealed compartments.
Climatic version according to GOST R 50444	UHL 4.2
Resistance to mechanical effects during operation according to GOST R 50444	group 2
Rated mains voltage	220 V
Potential consumer	Therapeutic and prophylactic medical establishments.
Scope of application	Abdominal organ examination; Cardiac examination; Gynaecological examination; Musculoskeletal examination; Obstetric examination; Paediatric examination; Small organ examination; Transcranial Dopplerography; Urological examination
Echogram generation modes	2D mode; M-mode; Colour M-mode; Anatomical mode; Colour Doppler (CD) mode; Pulsed-wave spectral Doppler (PD) mode; Continuous-wave Doppler (CWD) mode; Tissue Doppler Mapping (TDM) mode; Tissue Pulse Mode

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
