Measuring complex with video fixation "KORDON-M"

Measurement and Control Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

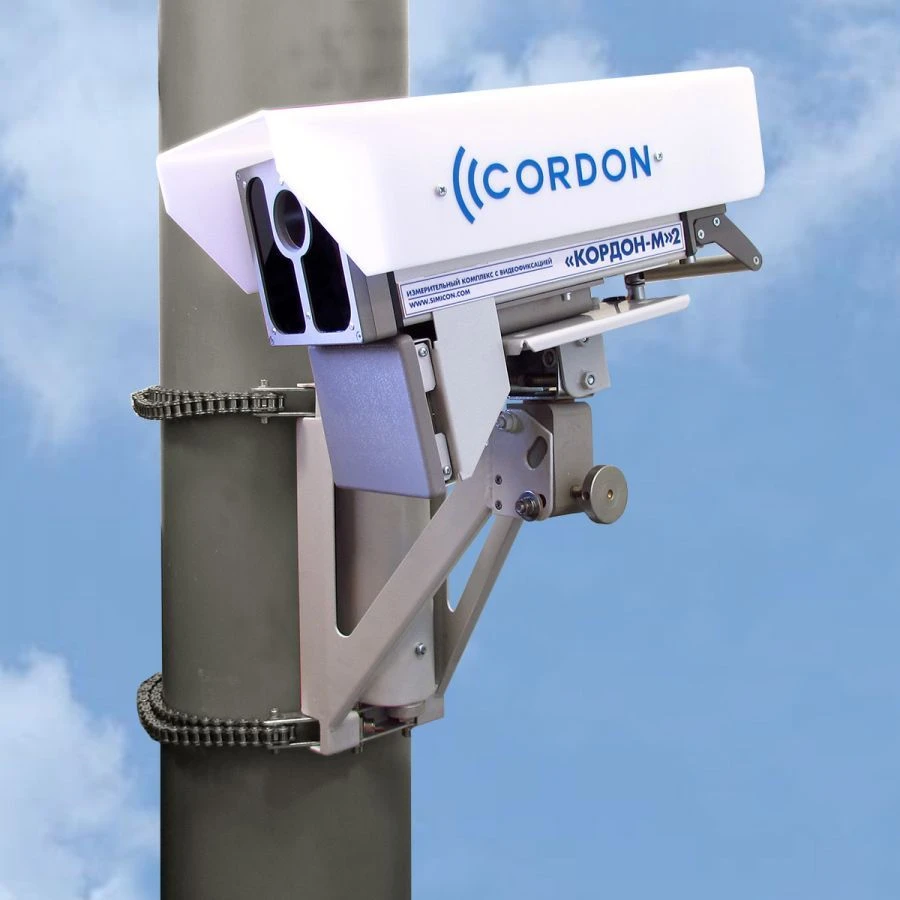

The measuring complexes with video fixation "KORDON-M" are designed for automatic measurement of speed and control of crossings, crossings and pedestrian crossings by vehicles at single and group traffic on different lanes. Complexes carry out automatic measurement of speed of vehicles, analysis of the trajectory of their movement, obtaining their photo image and fixation of the obtained data on a data carrier. Complexes contain a Doppler speed meter, video camera, computer for processing of the received information, information storage device, output unit for data transmission via cable and/or wireless communication channels to external devices, satellite navigation module, power supply and backlighting units. An essential feature of the FB is the function of determining the radar coordinates (range and azimuth relative to the location of the FB) of one or more vehicles whose speed is recorded.

Technical Specifications

Type of product according to PP RF 616	Instruments and other instruments for measurement, control and testing
Operating frequency of radiation	24050...24250
Range of measured vehicle speeds	2...300
Limits of permissible absolute error of vehicle speed measurements	2
Limits of permissible absolute error in determining the coordinates of the complex in plan view	5 m
Limits of allowable absolute error of time synchronization relative to UTC (SU) scale	1
Tolerance limits of instantaneous target coordinates determination by range	1 m
Tolerance limits of instantaneous target coordinates determination by angle	2°
Power supply voltage from AC mains with frequency 50±1 Hz	180...270 V
DC power supply voltage	11.5...13 V
Weight, not more, photo radar unit "K2"	5.5 kg
Overall dimensions of FB, not more	460x190x300 mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
