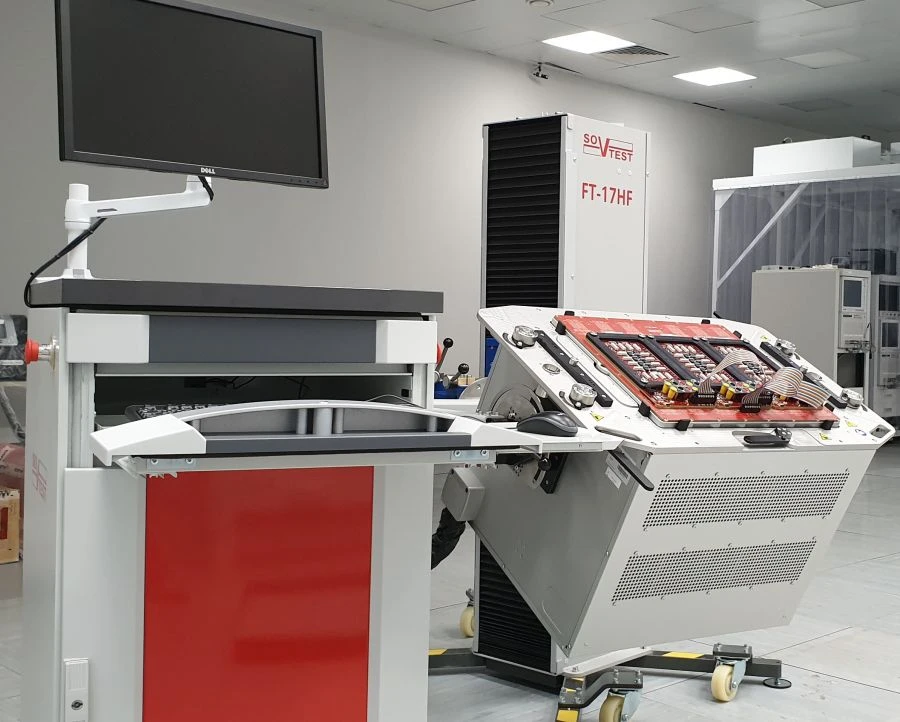

Measuring bench for control of parameters of microelectronic components FT-17HF-768

Electrical Measurement Systems

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

The FT-17DT-768 measuring bench for microelectronic components parameters control is designed for parametric, dynamic and functional control of digital and digital-analogue microcircuits with functional control performance up to 800Mbps.
The bench is an automated multichannel equipment. The parameters are controlled by applying signals to the pins of the chip under test, measuring the response signals and comparing them with the expected values.
Up to 12 boards of channel electronics with a total number of channels up to 768 can be installed in the stand.

Specifications

Maximum number of channel electronics boards B1/B8 2100/900 MHz pc

Maximum number of channels 768 pc

Maximum performance of functional control 800 Mbps

Vector memory capacity per channel 128 (256) Mb

Maximum number of simultaneously controlled microchips 96 pc

Reproducible/measurable voltage by driver/comparator -1.5...6 V

Driver/comparator voltage reproduction/measurement error -0.015...0.015 V

Reproducible voltage by the measuring power supply -5.5...14.5 V

Load capacity of the measurement power supply 1.2 A

Voltage setting error of the measuring power source -0.1...0.1 %

Reproducible/measurable voltage of the static meter -1.5...6 V

Reproducible/measurable current by the static meter 0...0.032 A

Number of sources-meters of static parameters 768 pc

Reproducible/measurable voltage with a high-voltage static meter -4...12.5 V

Reproducible/measurable current by high voltage static meter 0...0.08 A

Number of high-voltage sources-meters of static parameters 96 pc

Weight 110

Integration with probe dispensers, test equipment, external instruments via interfaces Armoured glass

Overall dimensions (W×H×H) 849x610x650

Mode of operation prolonged

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
