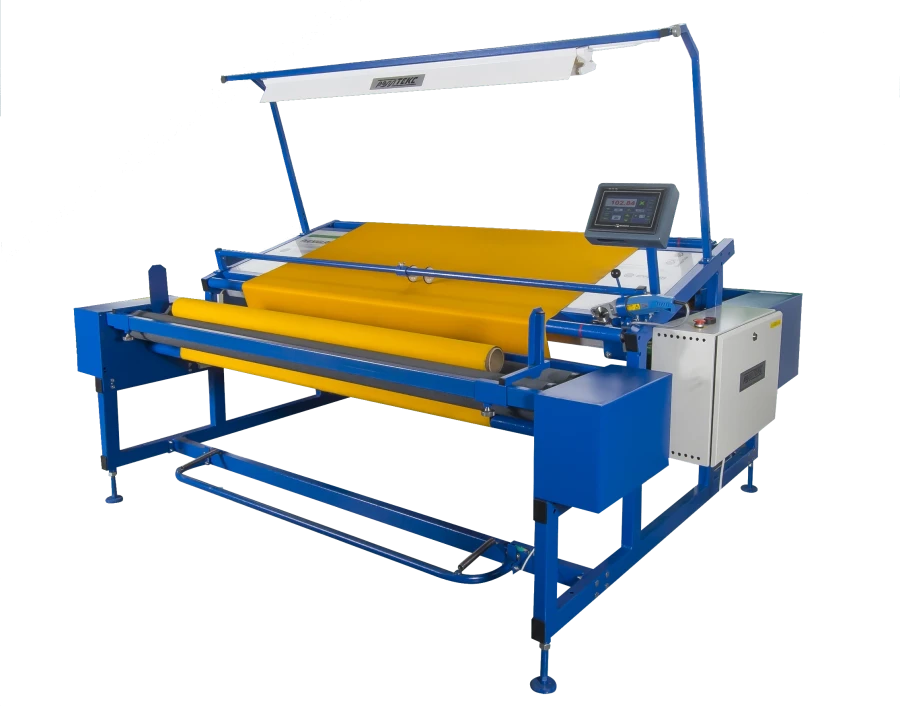

Measuring and Rejection Machine Model B01.14 for Non-elastic and Slightly Elastic Materials - Quality Control Solution

The measuring and rejecting machine model B01.14 is designed for rewinding from roll to roll, metre measurement and quality control of slightly elastic and inelastic materials. It provides rewinding of fabric rolls with diameter up to 400 mm and weight up to 60 kg. Available in roll widths from 1800 mm / up to 2000 mm / up to 3200 mm / up to 3500 mm.

The machine is equipped as standard with manual material stretch tracking system, electronic programmable metre counter, forward and reverse rewind with twisting into a bale, viewing screen with LED backlight, bale end sensor, etc. The machine can be additionally equipped with additional overhead lighting, static removal device, bale density adjustment, manual or automatic cut-off knife, ruler for visual measurement of the material width, Astra software for accounting of unwrapped bales, backlight width adjustment, additional bale end sensor, ...
