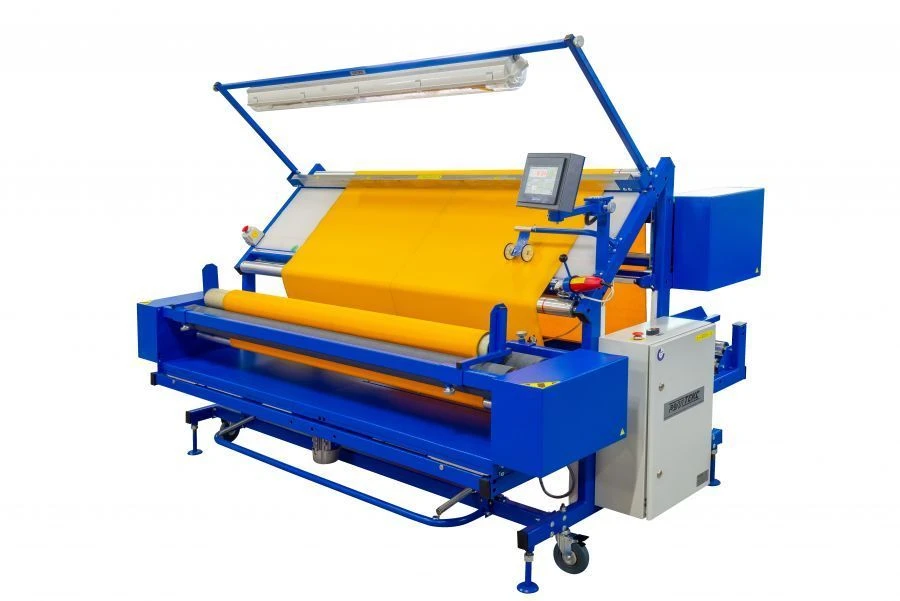

Measuring and bagging machine mod. B02.6

Manufacturer:
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Key Highlights

  • Made in Russia - engineered for durability
  • Suitable for challenging environments
  • Lower cost of ownership than European alternatives
  • Bulk orders available with volume discounts
  • Documentation and customs clearance assistance provided
The measuring and rejecting machine model B02.6 is designed to work with non-elastic and slightly elastic materials. Thanks to the loading basket machine allows you to work with bales of regular cylindrical shape (with a cardboard sleeve inside the bale), and irregular cylindrical shape (without cardboard sleeve inside the bale). The machine works with initial bales weighing up to 90 kg and with a diameter of up to 600 mm and rewinds them into bales weighing up to 60 kg and with a diameter of up to 400 mm. The machine is available in bale widths from 1800 mm / up to 2000 mm / up to 2500 / up to 3200 mm / up to 3500 mm. The machine is equipped as standard with bale edge levelling system, automatic material stretch tracking system, electronic programmable metre counter, forward and reverse stroke without twisting into a bale, viewing screen with LED backlight, bale end sensor, etc. The machine can be additionally equipped with additional overhead lighting, static relieving device, density adjustment...

Technical Specifications

Mark Rolltex
Type of rewinder from a cylindrical bale wound on a cardboard bobbin or a flat bale without a cardboard bobbin into a cylindrical bale wound on a cardboard bobbin with an outer diameter of at least 40 mm.
Maximum bale diameter at inlet 600 mm
Maximum output bale diameter 400 mm
Maximum rewinding speed, m/min SBVVBG
Maximum weight of roll on entry Flat grinder, Specialised grinder kg
Maximum bale weight at the outlet 60 kg
Type of materials to be rewound Woven, inelastic and slightly elastic fabrics
Electronic programmable metre meter Armoured glass
Operator panel touch screen, rotary
Automatic material stretch tracking system as standard. according to sensor readings.
Automatic bale edge levelling system as standard. the edge is levelled on the base side by means of a carriage with a left-right movement according to the sensor readings. -The error of edge alignment is ± 2-4 mm depending on the initial winding and the type of material. -function
Illumination of the lower viewing screen Armoured glass
Viewing screen tilt angle, deg 45
Dimensions of the viewing screen 400 x 1800 mm
Foot pedal front pedal Serves for operative stopping or starting of the machine in case of defect detection or other technological reasons.
Foot pedal rear pedal Serves to facilitate filling of the bale
Emergency buttons Armoured glass
Reverse Without coiling
Machine stop sensor at the end of the bale As standard
Mains power supply 220 V

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
