?????????? MCS101-CPU-5R2F

Automatic Control Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

?????????? MCS100-CPU-5R2F ?????????? MCS100-CPU-5R

Description

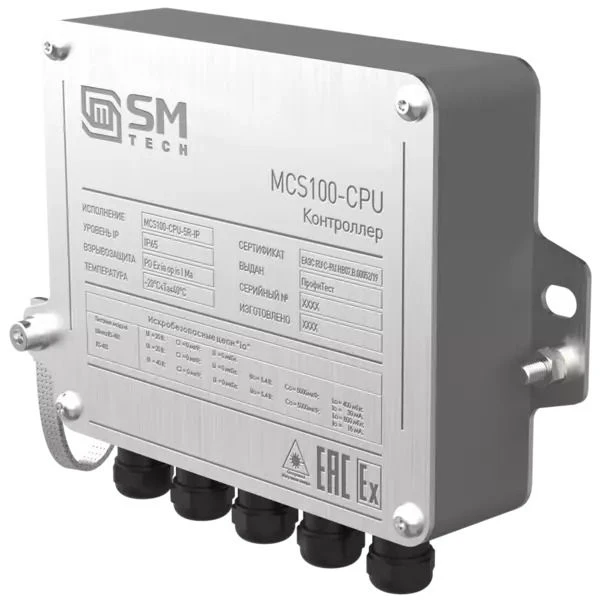

MCS101-CPU-5R2F is a control component of network fibre segments and RS-485 fieldbuses with application software.

Specifications

Assigned service life 10 years

Protection class against electric shock III

Degree of protection against external influences IP20

Operating temperature -20...40 °C

Explosion protection marking Ex ia op is I Ma U*

Programming system CODESYS V3.5 SP17

Connectors Power connector: 2-pole terminal block; RS-485 connector: 2-pole terminal block - 4 pcs, 1-pole terminal block - 2 pcs; optical connector: LC connectors

Data transfer rate RS-485: 38,400 bps (default); 100BASE-FX: 100 Mbps

Rated DC voltage B1/B8 2100/900 MHz V

Power consumption, max. 3 W

Standards IEEE802.3u 100Base-FX, RS-485

Number of RS485 ports (lines): 5 pc

Number of 100BASE-FX ports (lines): 2 pc

Management MODBUS RTU, UDP. TCP

Overall dimensions 153 x 126 x 34 mm

Weight, not more 0.4 kg

Mounting DIN rail: W-type, width 35mm, recommended height 7.5mm/15mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
