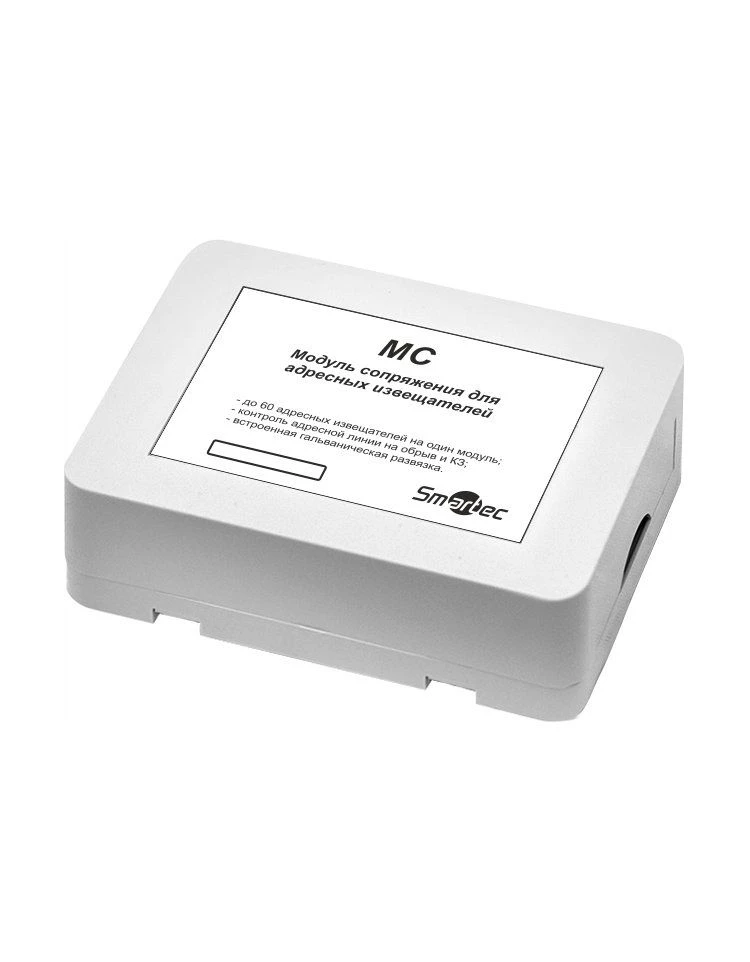

MC-V-IP54 Input Module for Vesta 01F Fire Alarm System - Reliable Safety Solution

The input unit (module) of MC series (hereinafter referred to as the module), which is a part of Vesta 01F addressable fire alarm and control device (hereinafter referred to as the device), is designed to form one circular addressable line "LA" or two radial addressable lines "LA", into which addressable fire detectors are connected. MS-V-IP54 is a plastic housing of wall-mounted version with IP54 protection. The module provides connection to the addressable line "LA" API up to 60 pieces. The module in all versions has a built-in short-circuit isolator. In the event of a short circuit in the addressable line "LA", the short-circuit isolator galvanically isolates the minus terminals (input and output) of this line. The difference between the versions with the letters "L" and "V" lies in the supported protocol of exchange by the OEM-partner code with addressable fire detectors
