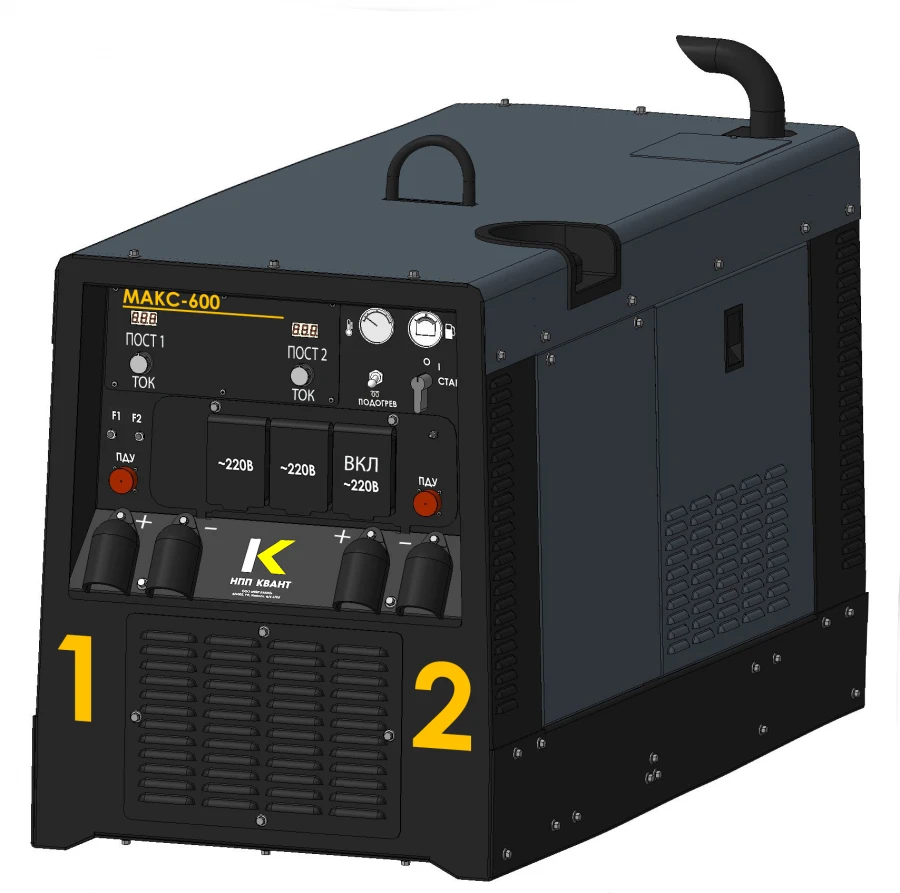

MAX-600 Welding Machine - Dual-Station Arc Welding Unit

Available for Import

MAX-600 Welding Machine - Perfect for Manual and Semi-Automatic Welding Applications

Electric Welding Machines

Manufacturer: Kvant LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Designed for use as an autonomous two-post welding complex for manual and semi-automatic arc welding, cutting and cladding of metal with direct current with adjustment range of each post 30-300 A. It is produced in climatic version "U" of placement category "1" according to GOST 15150 and is designed for outdoor operation in field conditions. Provides nominal parameters when working at an altitude not more than 1000 m above sea level at ambient air temperature from minus 60 ° C to plus 40 ° C and relative humidity not more than 80% at 15 ° C. .

Specifications

Type of product according to PP RF 616

Arc welding equipment

Power

52.8 kW

Rated welding current

300 A

Operating voltage

32 V

Minimum welding current

30 A

Welding current adjustment range

30...300 A

Service life

5 year

EFFICIENCY

80 %

Insulation class

Protection class

IP23 S

Switching modes

Armoured glass

Magnetic current compensation mode

Armoured glass

Drive motor

Armoured glass

Converter (2 posts)

Armoured glass

Additional 220V power supply

Armoured glass

220V auxiliary source voltage

230 V

Power of auxiliary 220V source

5 kW

Weight

680 kg

Dimensions

1650x920x910 mm

Mark

MAX-600

Type

welding unit

Equipment

MAKS-600, technical description, passport for MAKS-600; engine manual; passports and manuals for MAKS-600; set of remote control (2-button for welding, 1-button for KMP); set of engine consumables for 4 thousand reels (fuel, oil, air filters),oil, air filt

Load Duration (LL)

100 %

Type of welding voltage regulation

smooth

Contact welding

Manual arc welding

Armoured glass

argon-arc welding

Armoured glass

Semi-automatic welding

Armoured glass

Automatic welding

Armoured glass

Type of welding current

permanent

Maximum welding current

300 A

No-load voltage

Flat grinder, Specialised grinder V

Height

910 mm

Width

920 mm

Length

1650 mm

Operating modes (continuous/pulse)

continuous

Maximum power consumption, kW

52.8

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
