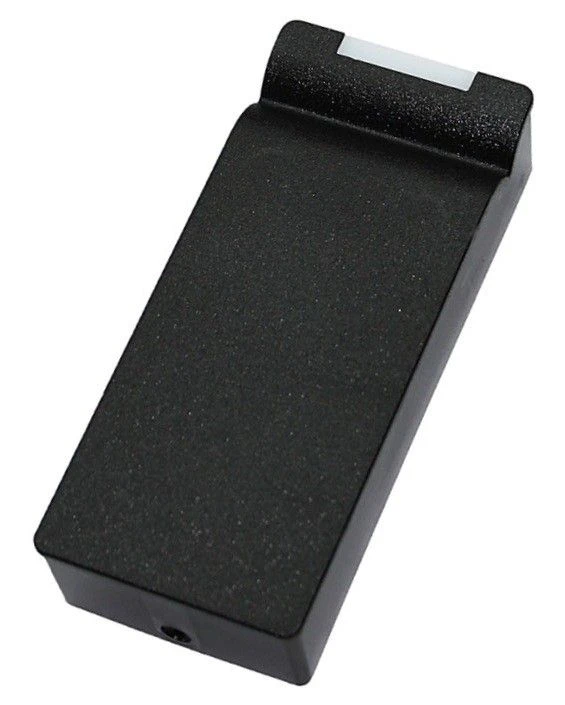

Matrix-VI reader (mod. NFC K Net) for ACS

The Matrix-VI reader (mod. NFC K Net) is designed for use in access control and management systems (ACS) and is a reader of contactless cards of the Mifare family and other cards supporting the ISO-14443A standard, and a controller in one housing.
The device can be configured and operated both autonomously and in network mode under the control of an external programme via RS-485 interface.
The device can operate in three modes: ACS controller, reader or configuration mode.
In the controller mode, the built-in controller controls external terminals, light and sound indication, as well as RS-485 interface.
The following equipment can be connected to the terminals of the device in this mode:
-contactless card reader operating via iButton or Wiegand protocols, including the same device in reader mode;
-electromagnetic or electromechanical lock or electric latch;
-button for unblocking the passage without a card;
-position sensor...
