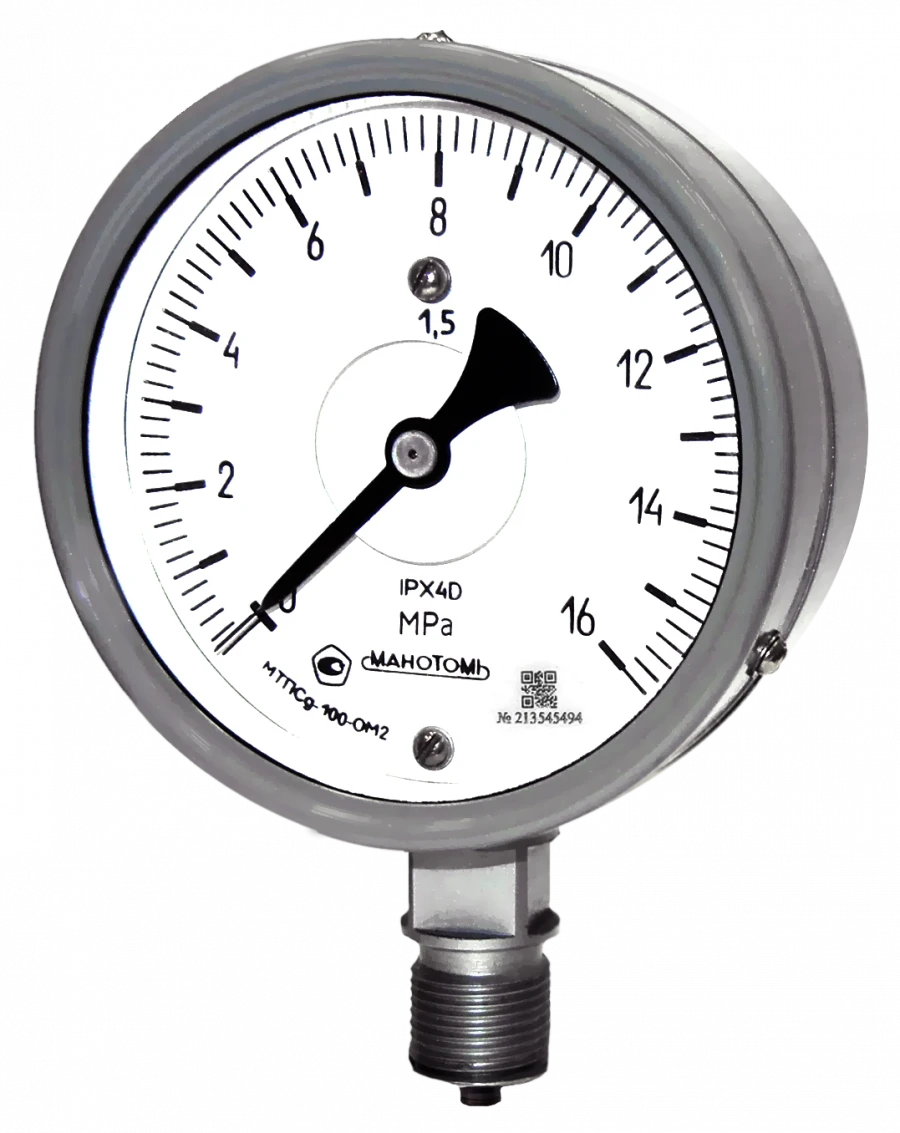

Marine indicating pressure gauges MTPSd-100-OM2

Pressure Measuring Instruments

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

They are intended for measuring gauge and vacuum pressure of liquids (diesel fuel, oil, water, sea water), gases and water vapour, temperature of which at the pressure sampling point should not be more than 60º?, in the environment saturated with vapours of lubricating oil, diesel fuel and sea water.

Specifications

Body diameter 100 mm

Climatic version OM2

Fitting threads M20x1.5-8g, G1/2-B, K 1/2''

Accuracy class of instruments 1,5 (optional 1,0)

Degree of protection IPX4D

Housing material Aluminum alloy

Design options Radical fitting without flange, radical fitting with rear flange

Range of readings 0 to 600 kgf/cm2

Inspection interval 2 a

Warranty period of operation 3 a
