Manual Winch RL-500/1000-60 Version 1 Available for Import

Manual Winch RL-500/1000-60 for Loading and Unloading Applications

Diverse Winches
Manufacturer: AVITEK OJSC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

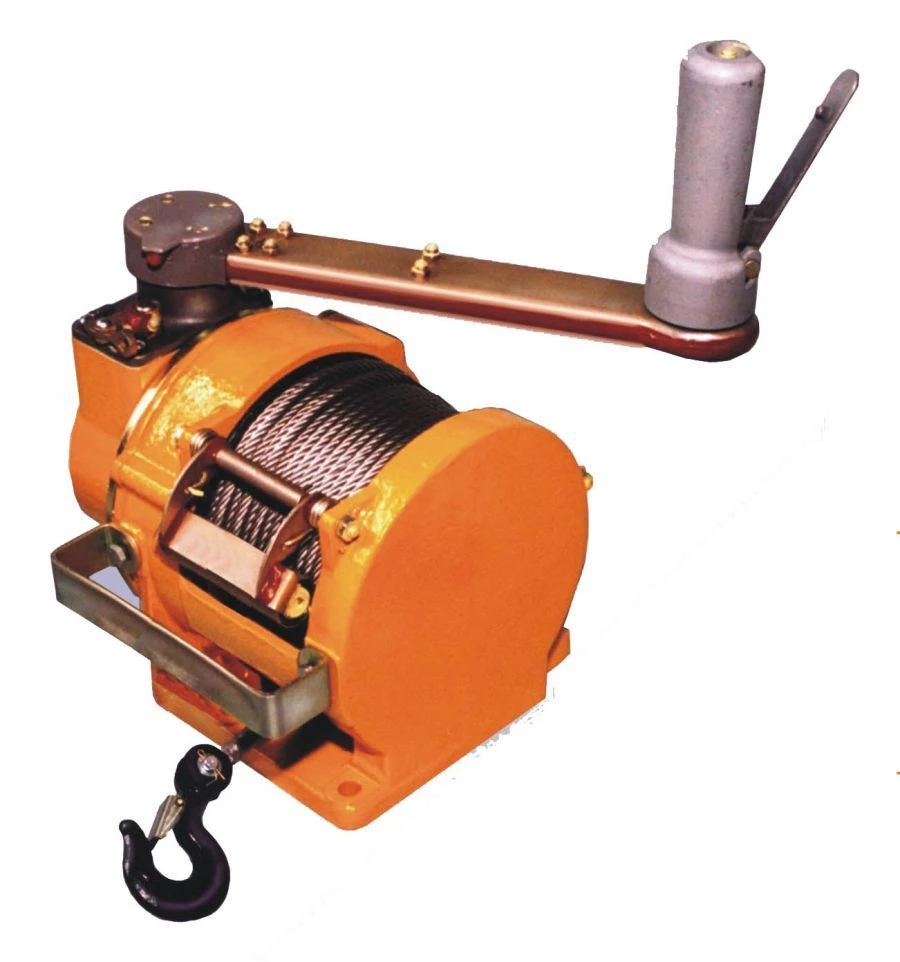

Manual winch RL-500/1000-60-15 version 1 is designed for loading and unloading operations in construction and agriculture, installation work in individual garage, as well as for moving loads. The winch consists of an aluminium housing with places for fixing the winch to the supporting surface, a drum with a rope, a gearbox, a swivel head, a ratchet mechanism and a manual drive handle with a stopper to control the winch drive. The gearbox consists of one pair of bevel gears and two pairs of spur gears. The swivel head can be mounted in various positions for convenient use of the hand drive handle. The rotary motion of the handle on the shank of the winch is transmitted through the gearbox to the drum for releasing or retracting the rope. For carrying the winch there is a transport handle on the body.

Specifications

Rope length
60 m
Designation
RL-500/1000-60 version 1
Name
winch
Type
manual
Load capacity, not more
500 kg
Rope diameter
5 mm
Rope termination
lash
Weight
25 kg
Assignment
For lifting, lowering and moving loads
Overall dimensions
290x230x220 mm
Operating temperature range
-60 to +40ma °C
Maximum force on the handle of the manual drive when lifting/lowering the load, not more than
176.52

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
