Manual Control Mode Module MZR-8R for Optimizing Vessel Movement

MZ R-8R is designed for manual setting of vessel (boat) motion parameters in the control system of propulsion (power) installation.

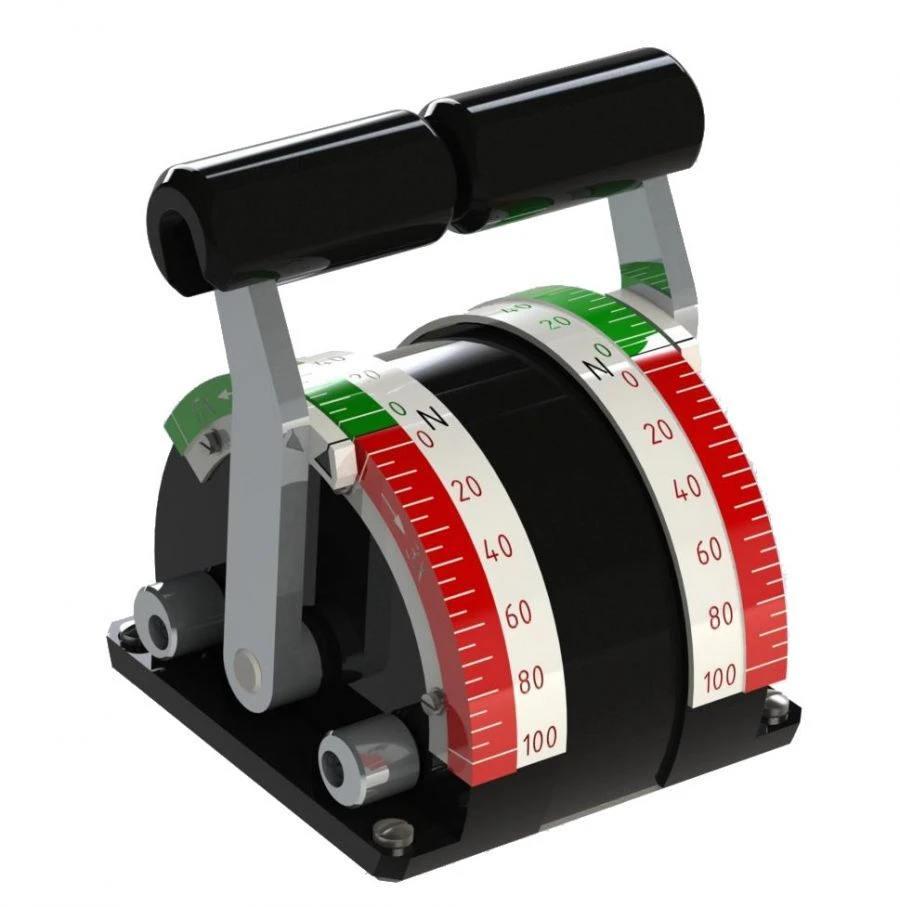

MZ R-8P is a mechanism with two handles (left and right), by means of which the operator sets the required operation mode of the propulsion system of the corresponding board, controlling the vessel's stroke. Under the handles on the front surface of the MZ R-8P there are scales with graduation in conventional units of forward stroke (0-100, green colour) and reverse stroke (0-100, red colour). Each of the two knobs of the MZ R-8P has an easy locking in position N - idle. To prevent spontaneous "slipping" of the handles during operation, the module has a friction brake.

Handle material-alloy aluminium; Handle colour/coating-black/powder enamel; Body material-alloy aluminium; Degree of protection from the front side-IP 22 GOST 14254-96; Output signal-digital; Used sensor type-RE22 SC 04 13B 10 A 2 A 00 (RLS....
