Manual clamping guide, article no. 855.013
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description

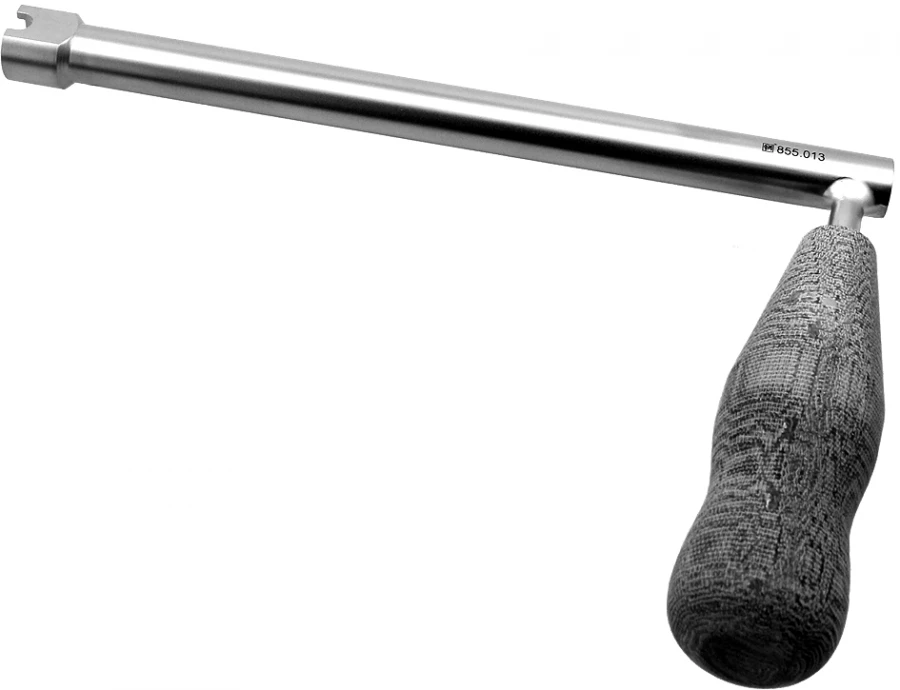

Instrument for surgical treatment of the spine. It is used for installation of transpedicular system. It is made of corrosion resistant stainless steel. The total length is 225 mm. The outer diameter is stepped: 20 mm at the edges and 18 mm in length, 15.5 mm in the middle. Inner through diameter 12.5 mm. Handle - at an angle of 80 with a total length of 128 mm. The handle is textolite shaped with a diameter of 35 mm, length 113 mm. At the other end is an internal profile hole 10.2 mm wide, 14.2 mm long and 10.2 mm deep. At the end, a groove 6.1 mm in diameter, 5.5 mm deep for gripping the longitudinal tie. Laser individual marking. Reusable.
Specifications
Sterility
no
Material
Corrosion resistant stainless steel
Groove depth
5.5 mm
Groove diameter
6.1 mm
Depth of internal profile hole
10.2 mm
Length of inner profile hole
14.2 mm
Width of internal profile opening
10.2 mm
Внутренний сквозной диаметр
12.5 mm
Outside diameter at edges
20 mm
Length
225 mm
Packaging
As required by GOST 19126-2007
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
