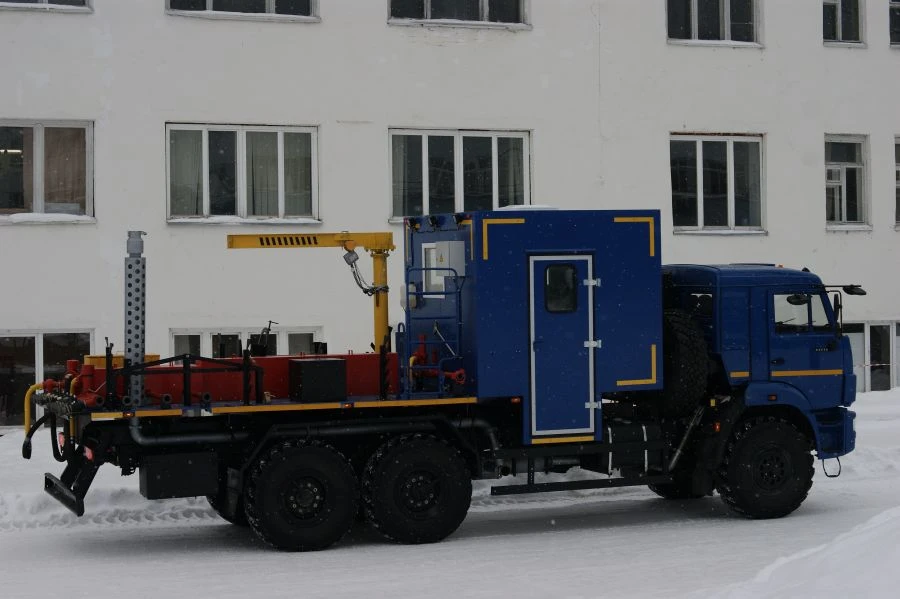

Manifold Block BM-40K for KamAZ-43118-50 Chassis

Available for Import

Manifold Block BM-40K for Pumping Applications and Cementing

Special Purpose Vehicles

Manufacturer: PJSC "IZHNEFTEMASH"

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Manifold block (BM) is designed to tie pumping units to the wellhead during cementing, hydraulic fracturing and other flushing and pumping operations. The BM equipment is mounted on the frame of the mounting base. The frame is fitted with pressure and distribution manifolds, load-lifting mechanism, auxiliary pipeline elements and a spoon for transporting the cementing head. The chassis provides the possibility of heating the pressure manifold with vehicle exhaust gases.

Specifications

Type of product according to PP RF 616

Special purpose motor vehicles other, not included in other groupings

Vehicle kerb weight

14900 kg

Width

2550 mm

Height

3600 mm

Length

9000 mm

Pressure manifold

32 MPa

Dispensing manifold

3 MPa

Payload

500 kg

Well cementing control system

SCCS

Dimensions

9000 mm

Save Your Time

Share your requirements for a quick response!

Looking for

Quantity

Your mobile

Instant response in 15 minutes

Best wholesale prices guaranteed

Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
